Cleave Menu
Clamp Settings
The left clamp home position can be set.
Tension Settings
The tension force and related parameters can be set.

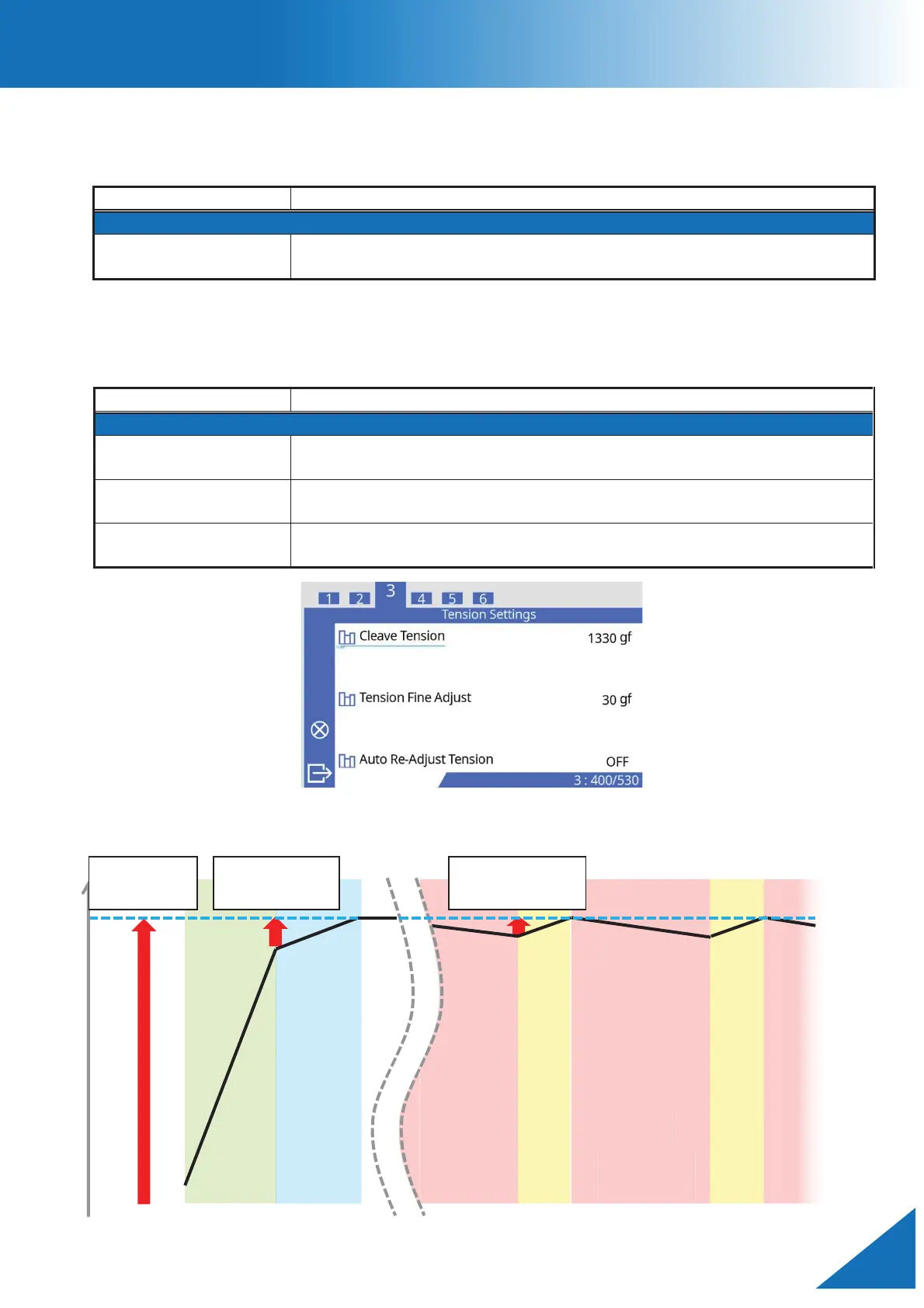

The following figure shows the fiber tensioning process.
Parameter
Description
Clamp Settings
L
eft Clamp Position
Sets the distance between right edge of the left clamp and cleaving
blade.
Parameter
Description
Tension Settings
C
leave Tension
Displayed the calculated tension from the cleaving diameter. This
parameter can be changed.
T
ension Fine Adjust
Sets the threshold for the cleaver to switch from coarse to fine
adjusting.
Auto Readjust
Tension
Sets the tension loss threshold for starting to re-adjust the tension. If
set to “OFF”, the cleaver will not re-adjust tension.
Tension Adjusting
Cleaving
Tension
Re-Adjust
Fiber Tension
Cleave
Operation
Time
Cleave
Operation
Tension
Re-Adjust
Fine-Adjust
Tension
Cleave
Tension
Auto Re-Adjust
Tension
Fine Adjust
Operation
Coarse
Operation
