Set Up the Cleaver
How to Change the Magnets’ Position

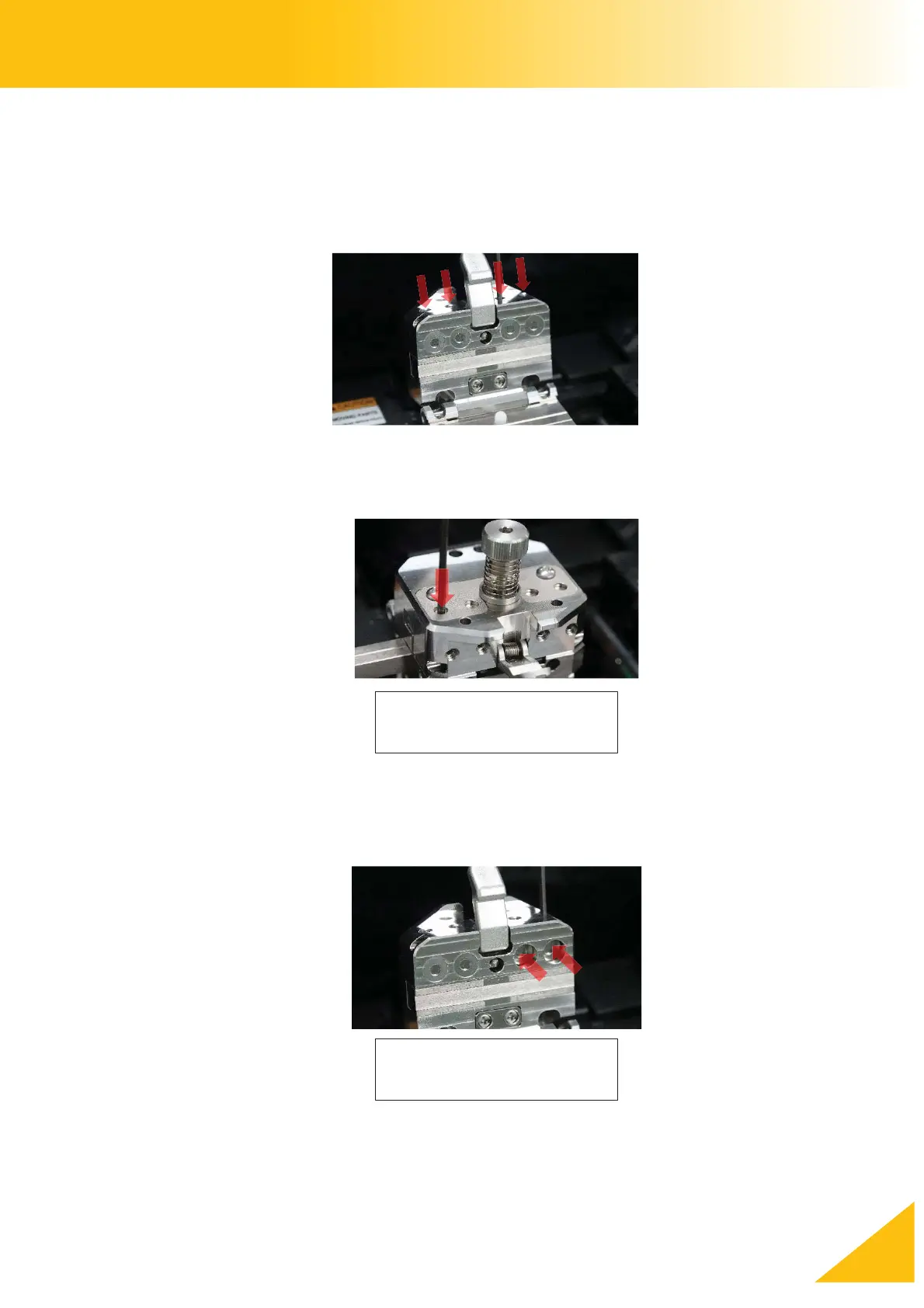

Each magnet is secured with a set screw, located in the upper clamp lid. There is one set
screw for each magnet, so when you want to change the position of a magnet, loosen the
set screw of the desired magnet using the included hex wrench. (HEX-01)
1. When moving the magnet to the lower position, close the upper clamp lid, loosen the
set screw, and push down on the magnet through the hole on the top.
2. When moving the magnet to the upper position, loosen the set screw while the upper
clamp lid is open and push the magnet from below.
Push the magnet down to
the lower position
Push the magnet up to the
upper position
