CT114_Rev2
71
Maintenance Menu

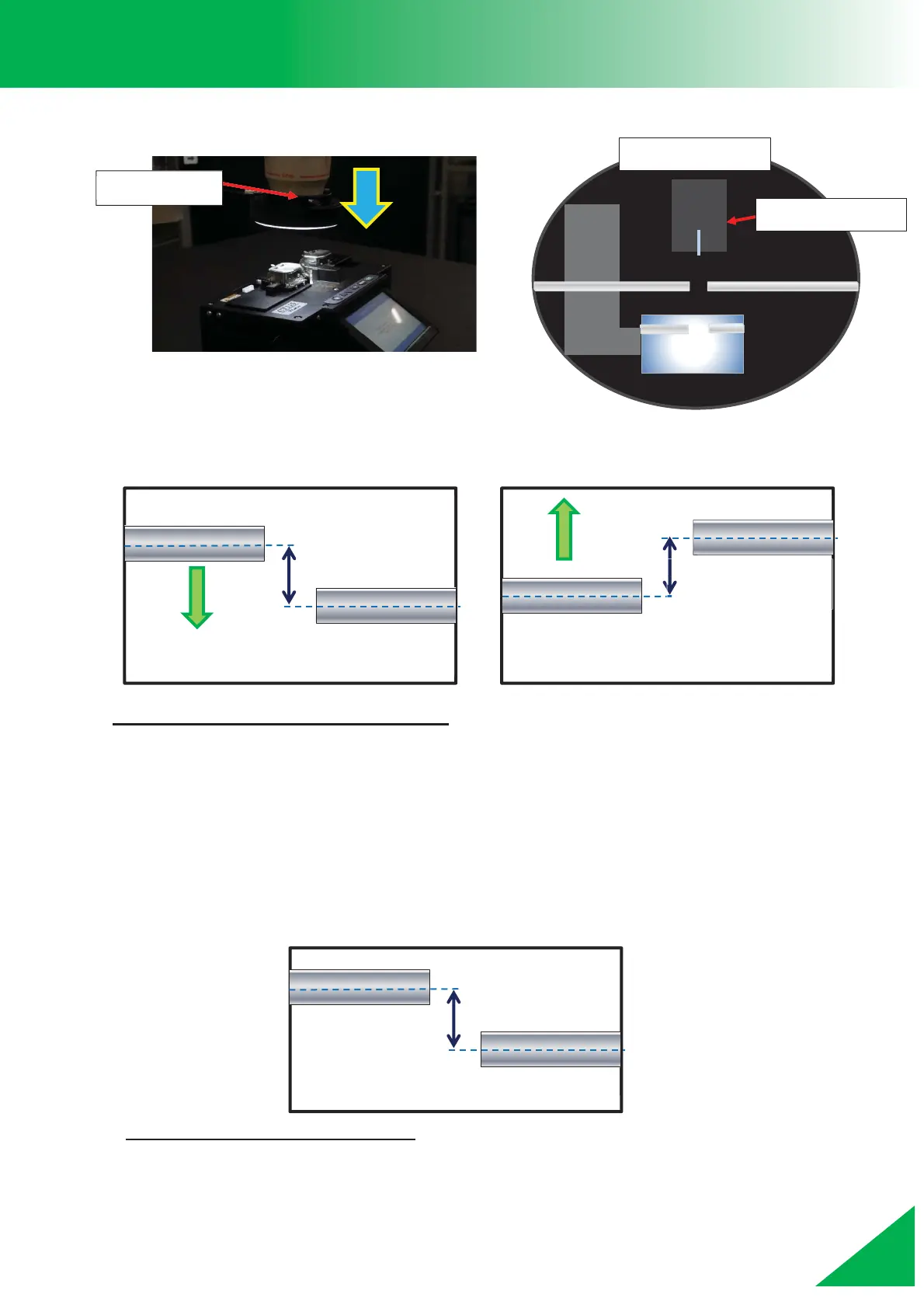

4. Position a microscope directly above the cleaver to use the Fiber Height Checking
Mirror for inspection.
5. Inspect the fiber with a microscope. Inspect the difference between the centers of each
fiber.
Guidelines for fiber height adjustment
*Height is adjusted using shims underneath the left insert base.
࣭
Difference within 100m…………………………No adjustment needed
࣭
Difference 110m
ࠥ
200m……………………...Increase or decrease the thickness
of the shim on the left clamp to adjust
࣭
Difference 210m or more………………………Use a different size of insert.
6. Observe the fiber from directly above with a microscope.
Check the difference between the centers of each side of the cleaved fiber
Guidelines for lateral adjustment
࣭
Difference within 200m……………….No adjustment needed
࣭
Difference 210m or more…………….Improper clamp position. May cause
poor cleaving
Microscope
㙾
㻌
Difference
Right-side
fiber
Difference
Right-side
fiber
㻌
Standard
Right
-
Side fiber
Difference
Cleaving Blade
ล
Overhead View
ล
