205
Mounting instruction
XIX

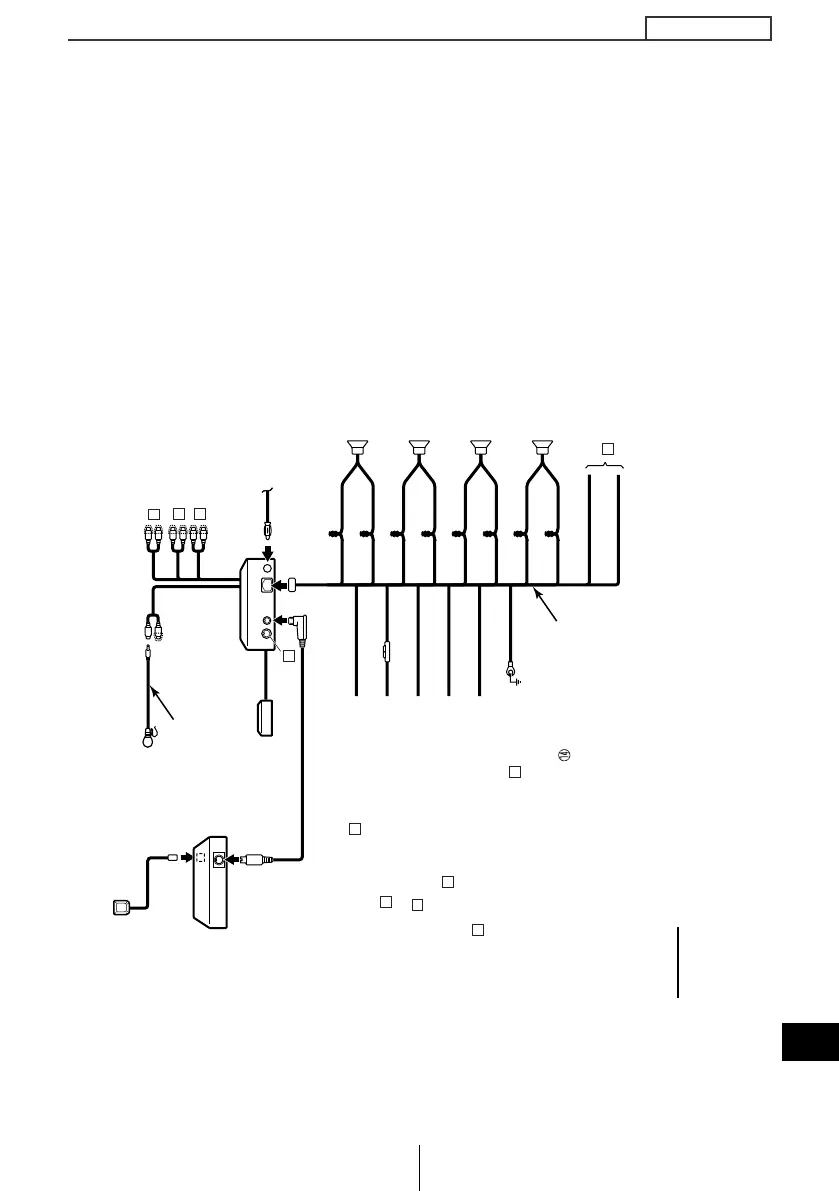

2) CD8445 + GPS105 + VRM803
Caution Never connect the power supply to the speaker leads, otherwise it causes damage to the
main unit.
   
VRM803
L SIDE
R SIDE
NON-FADER REAR FRONT
CD8445
ANTENNA PLUG
White(+)
White/Black(-)
Gray(+)
Gray/Black(-)
Green(+)
Green/Black(-)
Purple(+)
Purple/Black(-)
Brown
FL FR RL RR
TO STEERING REMOTE CONTROL
Brown/Black
Red Yellow Blue Orange/White Blue/White
Black
TO ACC (Power supply)
TO BATTERY+12V (Permanent supply)
TO POWER ANTENNA RELAY (supply)
TO HEAD LIGHT SWITCH (supply)
TO TURN ON LEAD OF EACH UNIT (supply)
TO GROUND
INTERCONNECTING CABLE
16P
10
9 8
7
1
2
3
4
6
5
14
GPS105
8P
GPS ANTENNA
