Mounting instruction

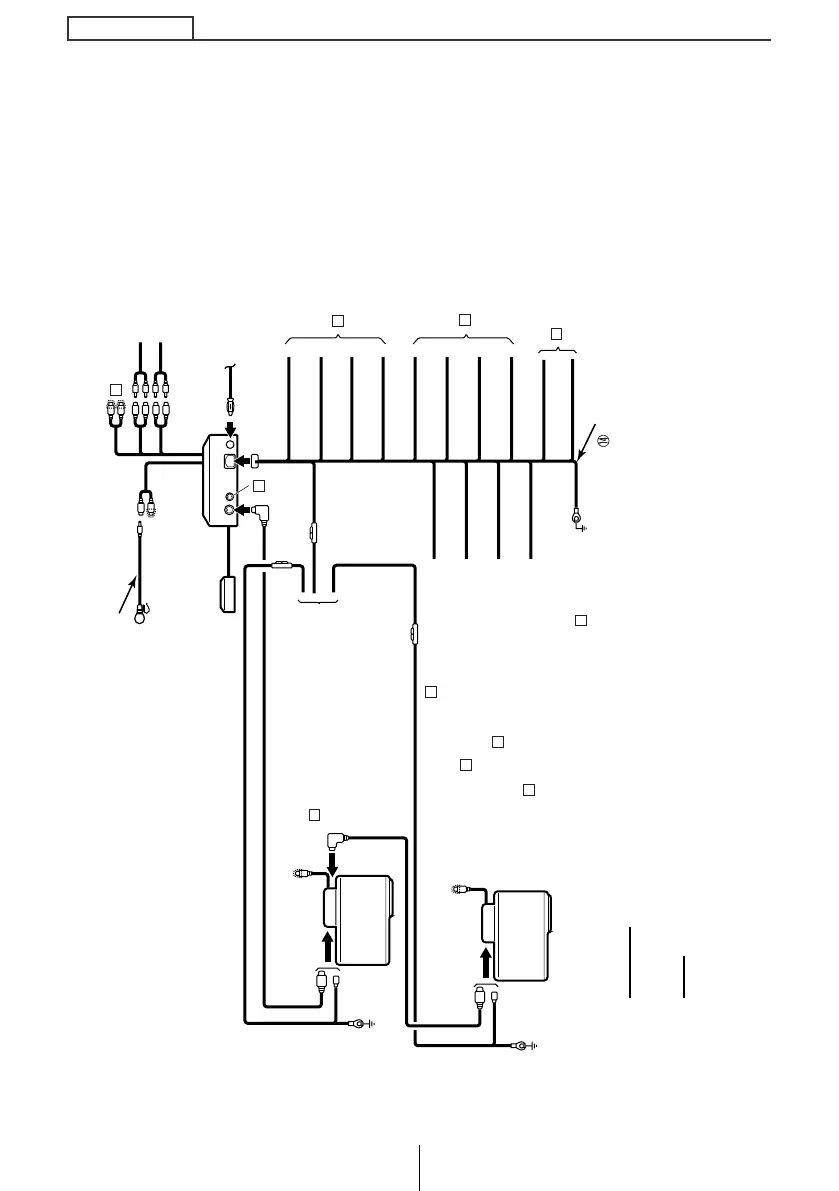

3) CD8445 + CH3083 + CH3083 + VRM803 + Power Amplifier
Caution
Never connect the power supply to the speaker leads, otherwise it causes damage to the
main unit.
Note
1.The switch on the back side of CD changer (A) must be set the "L" position.
2.The switch on the back side of CD changer (B) must be set the "H" position.
VRM803
L SIDE
R SIDE
NON-FADER
TO SIGNAL INPUT
OF AUXILIARY
POWER AMPLIFIER
CD8445
White(+)
White/Black(-)
Gray(+)
Gray/Black(-)
Green(+)
Green/Black(-)
Purple(+)
Purple/Black(-)
Brown
TO STEERING REMOTE CONTROL
Brown/Black
Red
Yellow
Blue
Orange/White
Blue/White
Black
TO ACC (Power supply)
TO BATTERY+12V (Permanent supply)
TO POWER ANTENNA RELAY (supply)
TO HEAD LIGHT SWITCH (supply)
TO TURN ON LEAD OF EACH UNIT (supply)
TO GROUND
INTERCONNECTING CABLE
16P
10
13
1
2
3
4
6
5
14
CH3083
13P
ANTENNA PLUG
13P
2P
(A)
(B)
CH3083
13P
2P
INSULATE EACH
WIRE WITH TAPE
11
INSULATE EACH
WIRE WITH TAPE
11
