System expansions

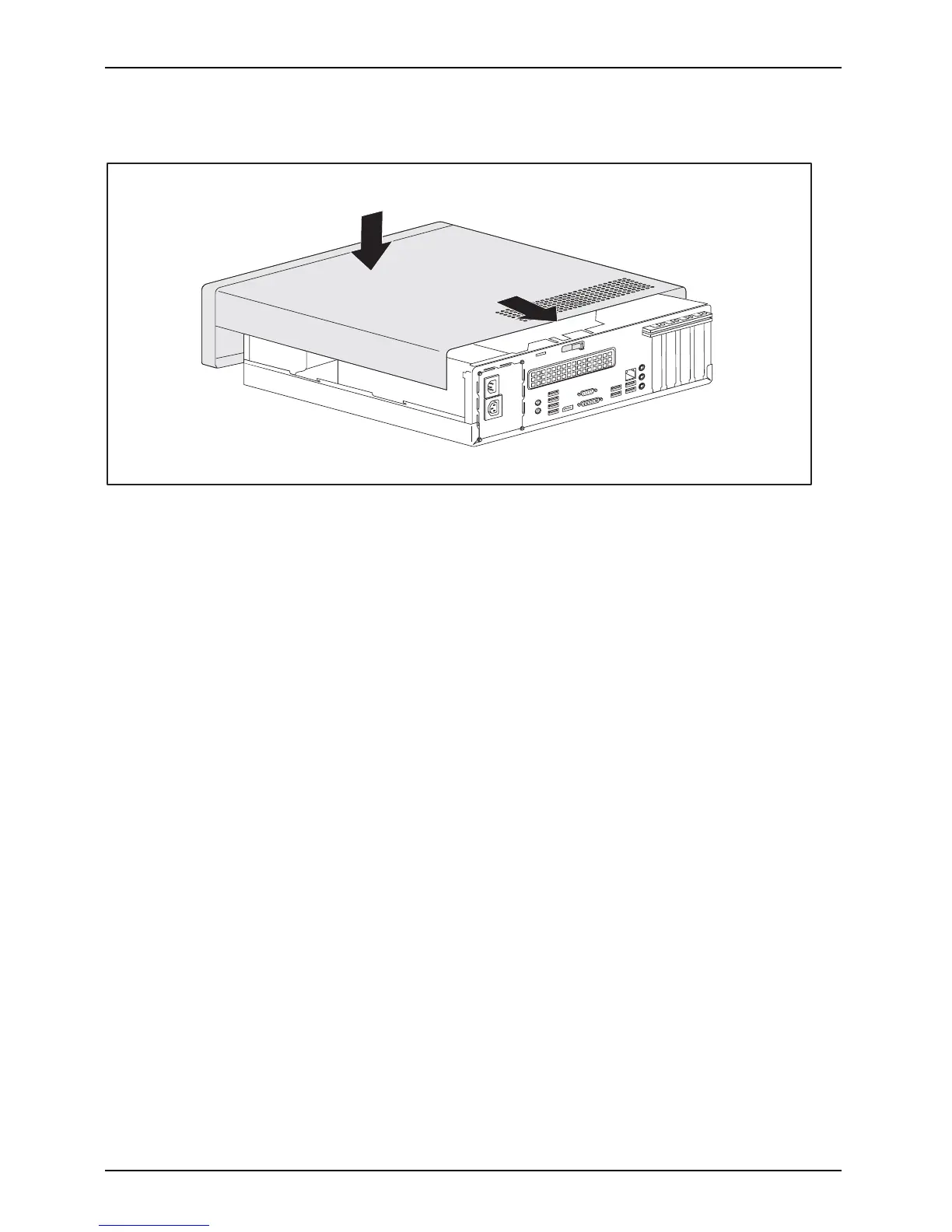

Reattaching the casing cover.

► Place the casing cover onto the casing (1) and slide it as far as possible

in the direction indicated by the arrow ( 2).



The casing cover will click into place automatically, without any need to

move the retaining mechanism.

► Connect the ca bles to the device.

38 Fujitsu
