System expan sio ns

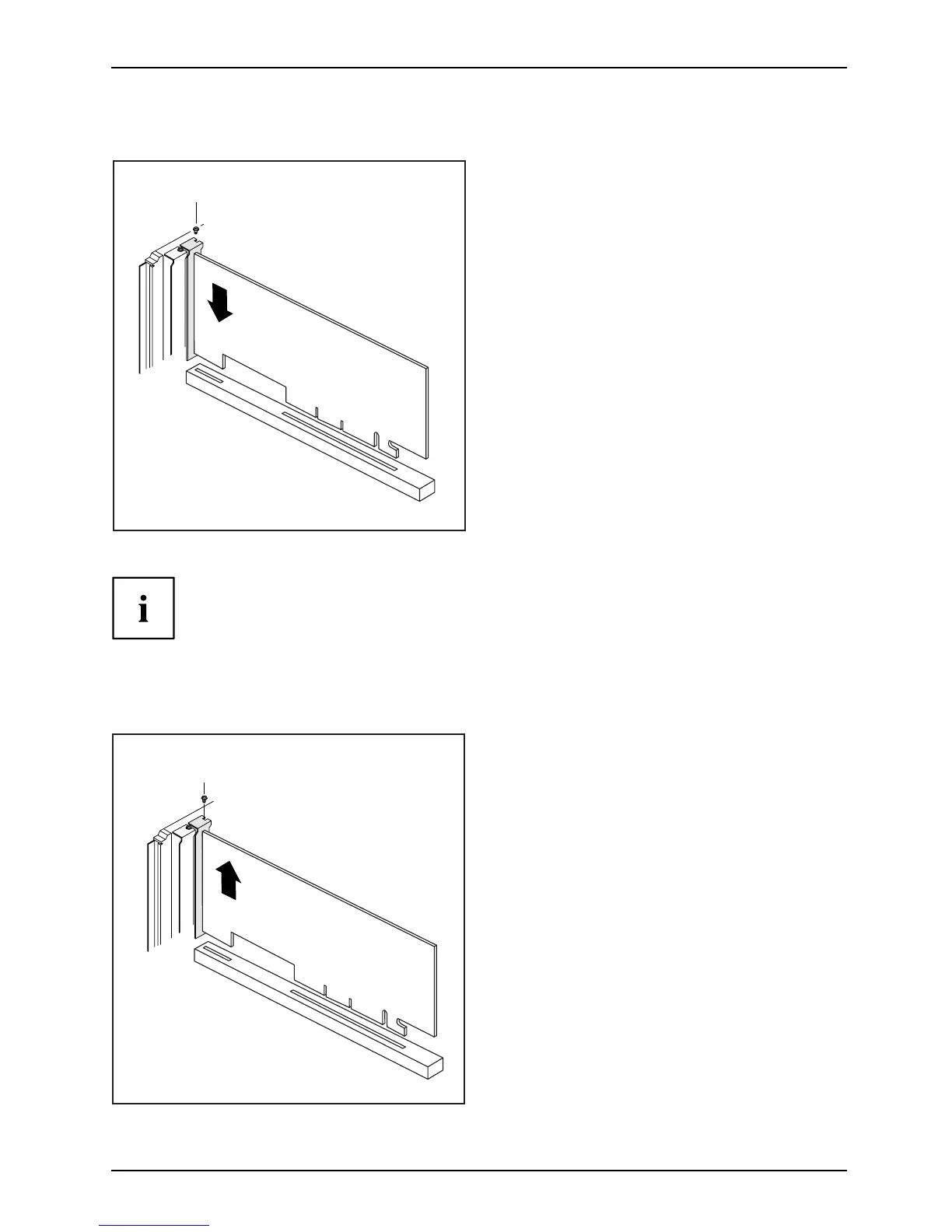

Installing a board
2
1
► Push the board into the slot (1)
until it engages.
► Tighten the screw (2, optional).
► If necessary, connect the cables to the board.
If you have installed or removed a board, please check the relevant PCI
slot settings in the BIOS Setup. If necessary, c hange the settings. Further
information is provided in the PCI board documentation.
Removing boards
► If necessary,
disconnect the cables which are conn ected to th e board.
2
1
► Undo the screw (1, optional).
► Pull the boa
rd out of the slot (2).
► Place the board in suitable packaging.
Fujitsu 57
