System expansions
Removing an accessible drive
► Remove the casing cover (see Chapter "Removing the casi ng cover", Page 37).
► Disconnect any cables connected to the drive.
1
2

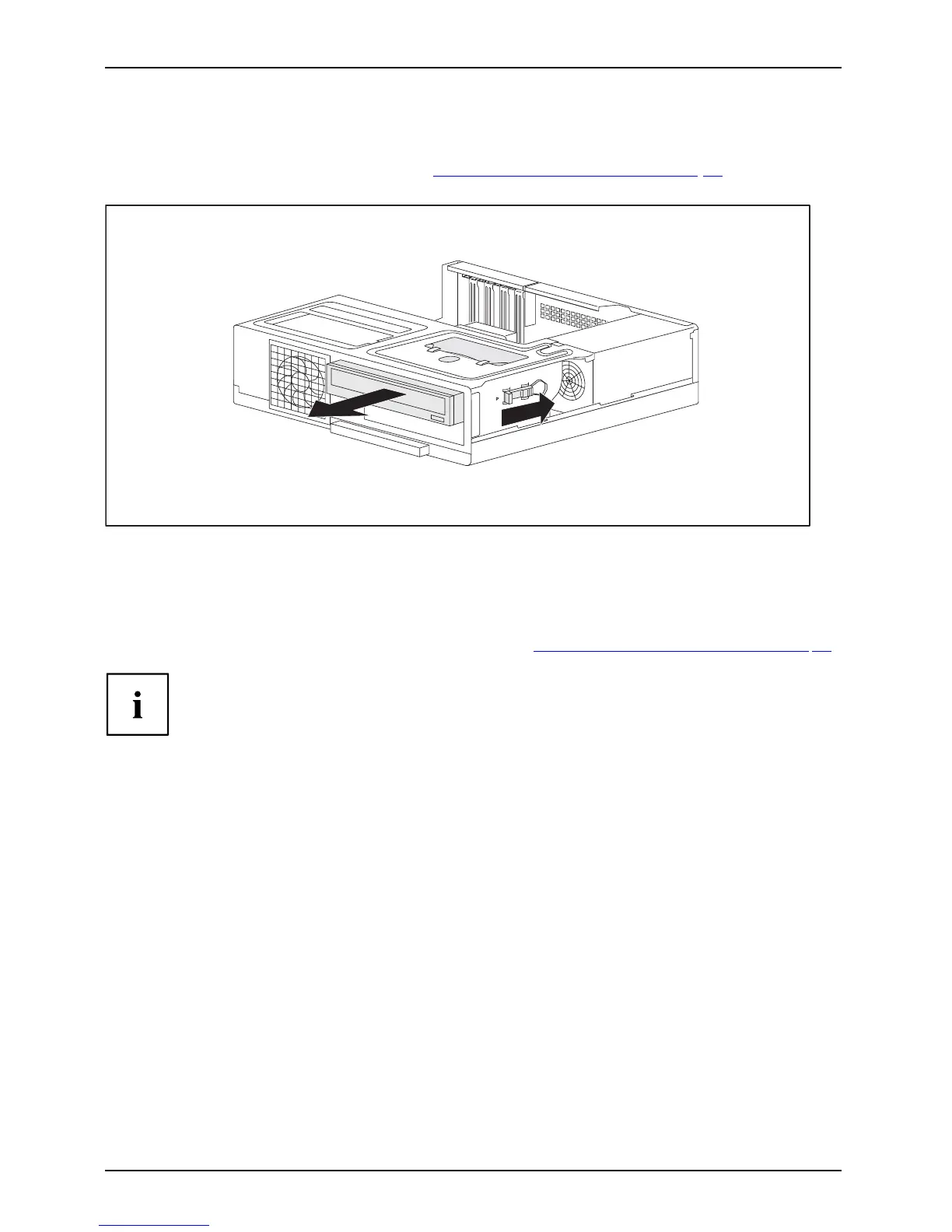

► Slide the retaining m echanism in the direction of the arrow (1).
► Pull the drive out of the drive cage in the direction of the arrow (2).
► If yo u do not install a new drive , then a drive placeholder must be installed in the drive
bay to prevent any foreign o bjects from entering the casing.
► Fit the casing cover back onto the casing (see Chapter "
Reat taching the ca sing cover.", Page 38 ).
It may be necessa ry to modify the entry for the drive in the BIOS Setup.
44 Fujitsu
