RX100 S5 Operating manual 83
CSS components Hot-plug HDD modules
Unlocking the HDD module

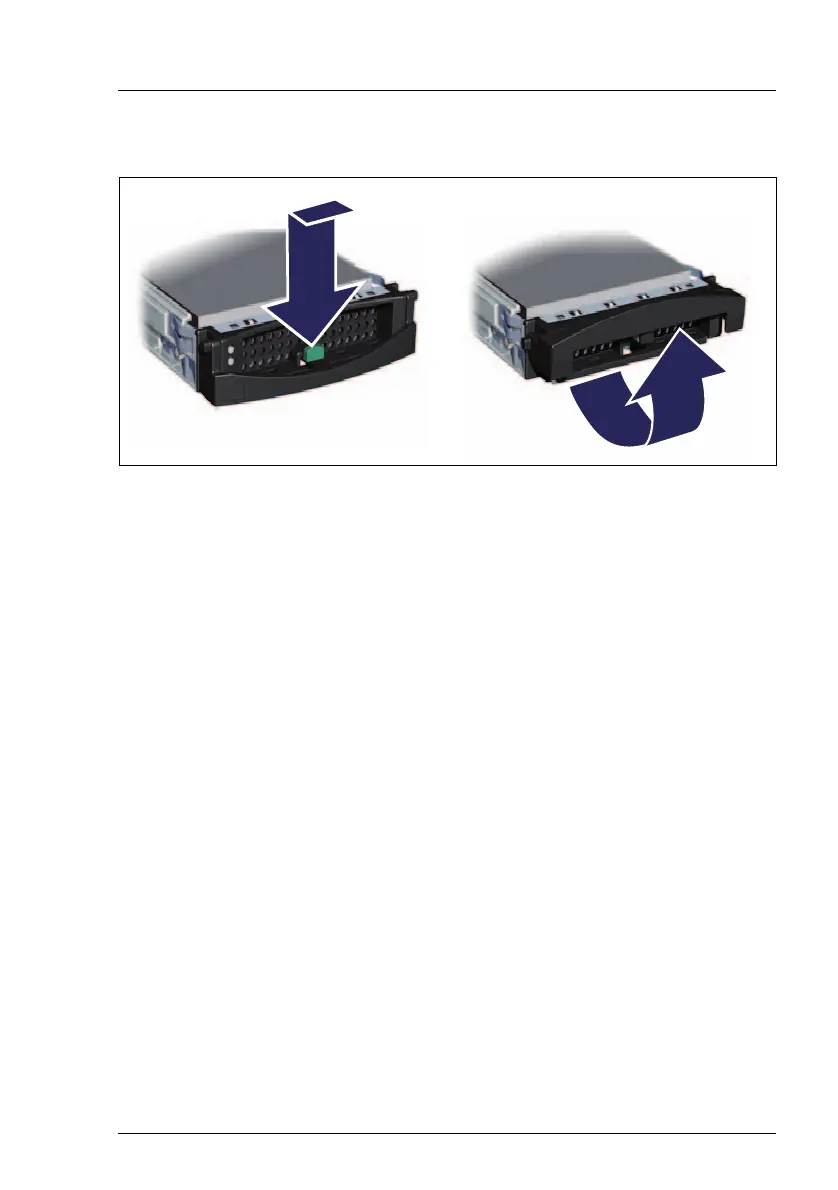

Figure 19: Unlocking the HDD module
Ê Release the locking mechanism by pressing the locking button (1).
Ê Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
1
2
