Installing the HDD module

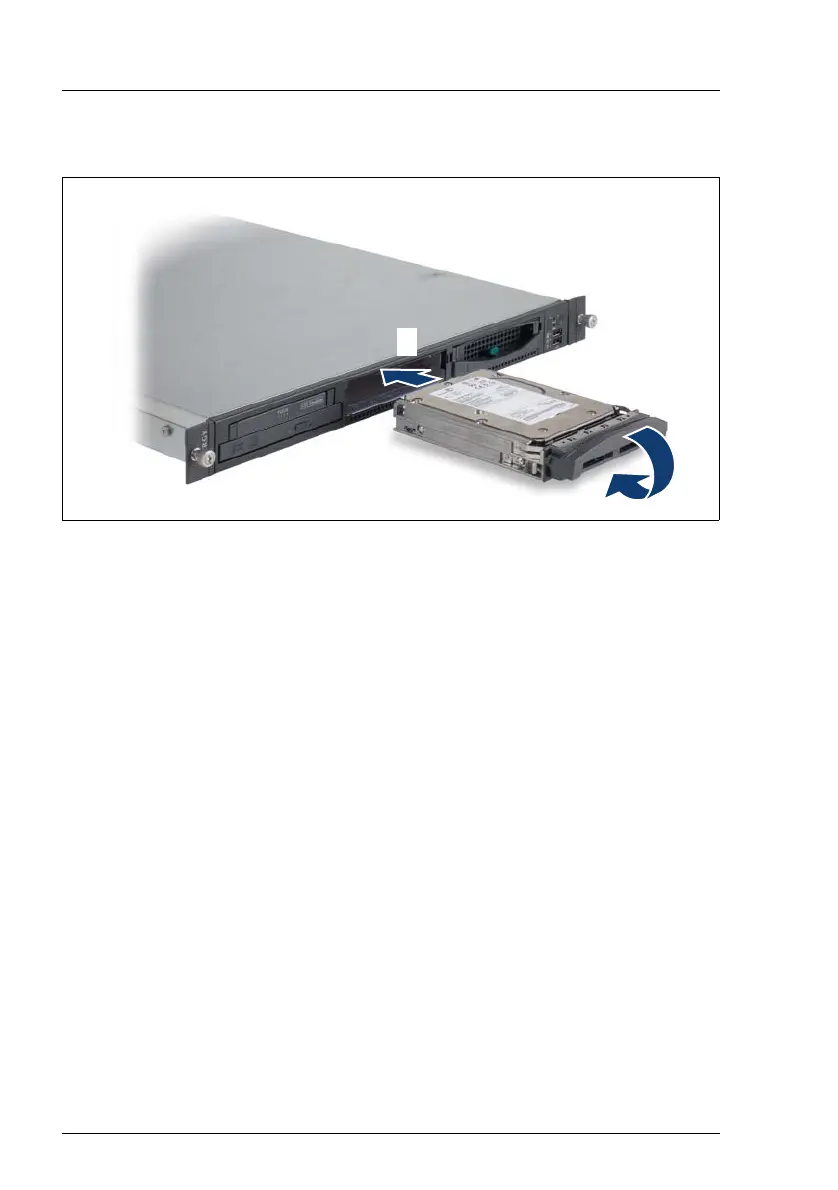

Figure 20: Installing the HDD module
Ê Unlock the HDD module as described in section “Removing the transport
lock” on page 82.
Ê Carefully push the HDD module into the empty slot (1) until it stops.
Ê Push the handle of the HDD module as far as it will go in the direction of the
arrow (2) until the locking mechanism is engaged.
