92 Operating manual RX100 S5
Replacement of non-hot-plug components CSS components

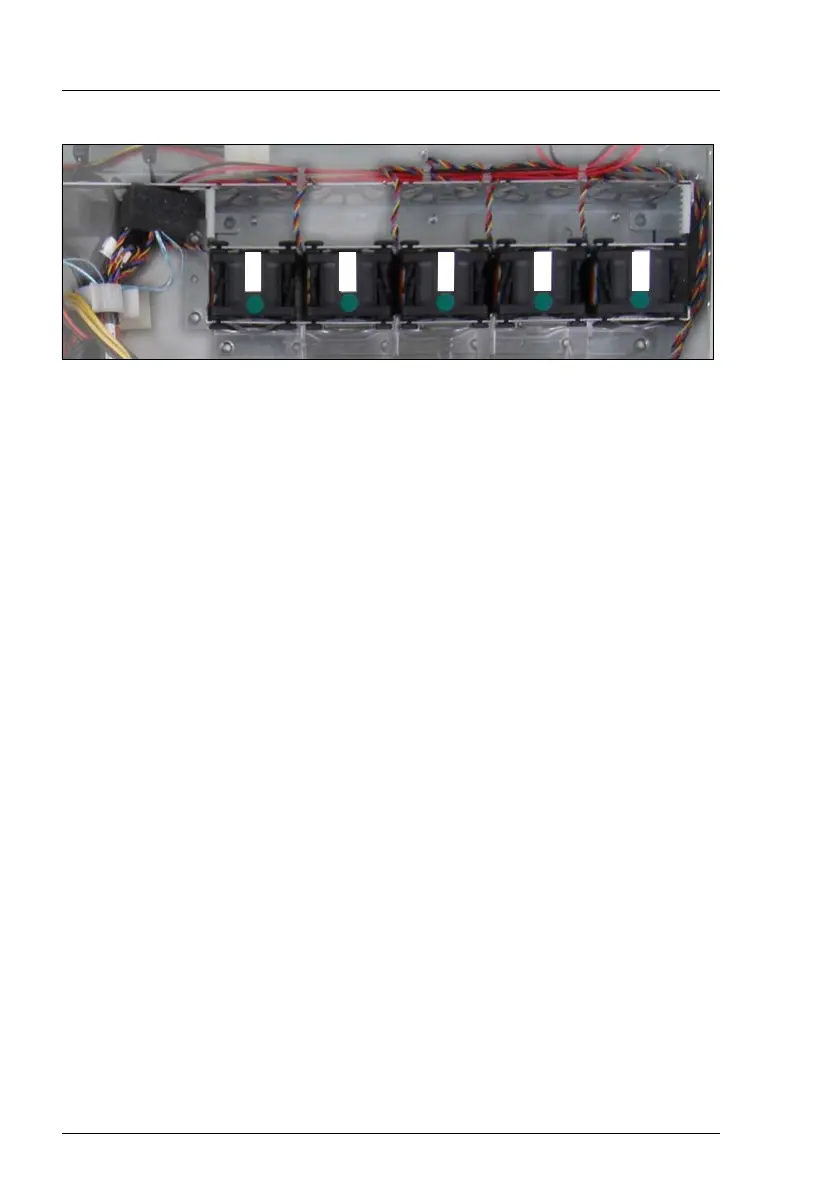

Figure 26: System fans 1-5
Ê Remove the system fan cable from the corresponding cable clamps.
Ê Remove the system fan cable of the defective system fan from the corre-
sponding plug on the system board (see the tecnical manual for the system
board D2542).
5 4 3 2 1
