94 Operating manual RX100 S5
Replacement of non-hot-plug components CSS components

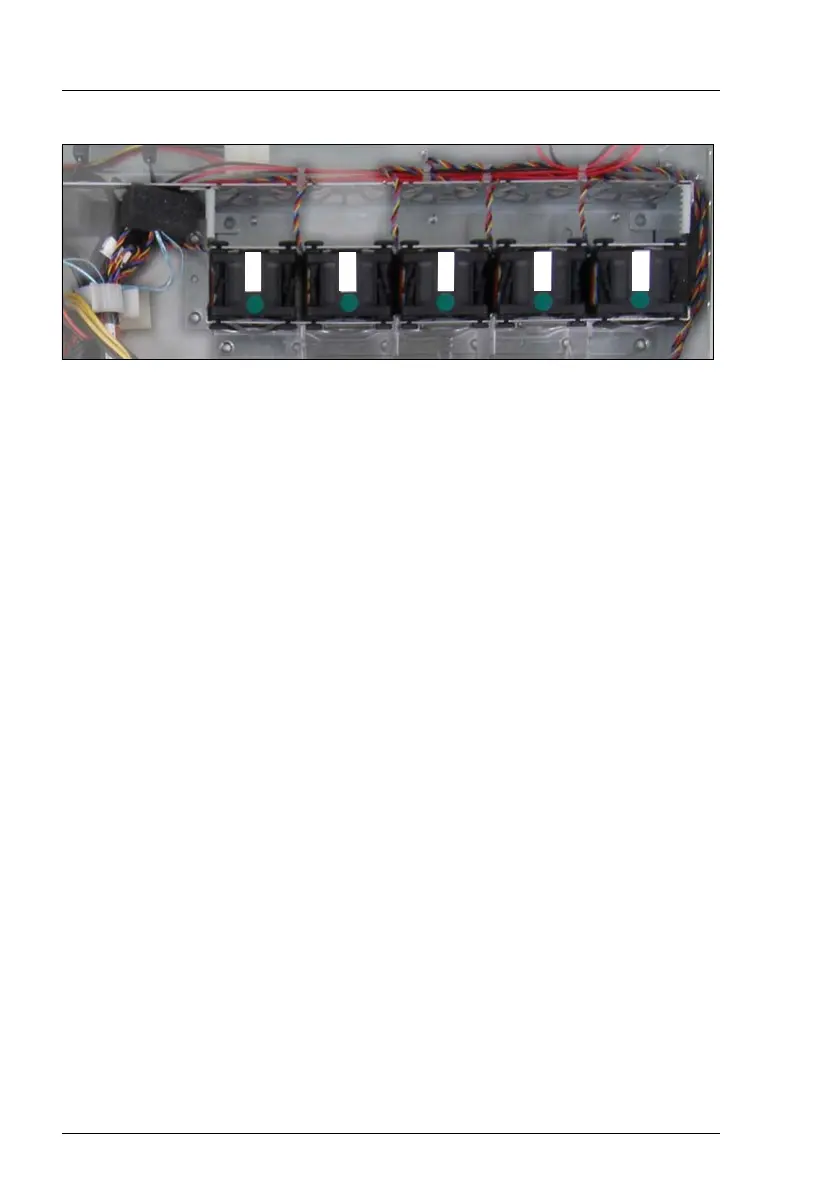

Figure 28: System fans 1-5
Ê Route the system fan cable with the aid of the cable clamps.
Ê Connect the system fan cable of the new system fan to the corresponding
plug on the system board (see the tecnical manual for the system board
D2542).
