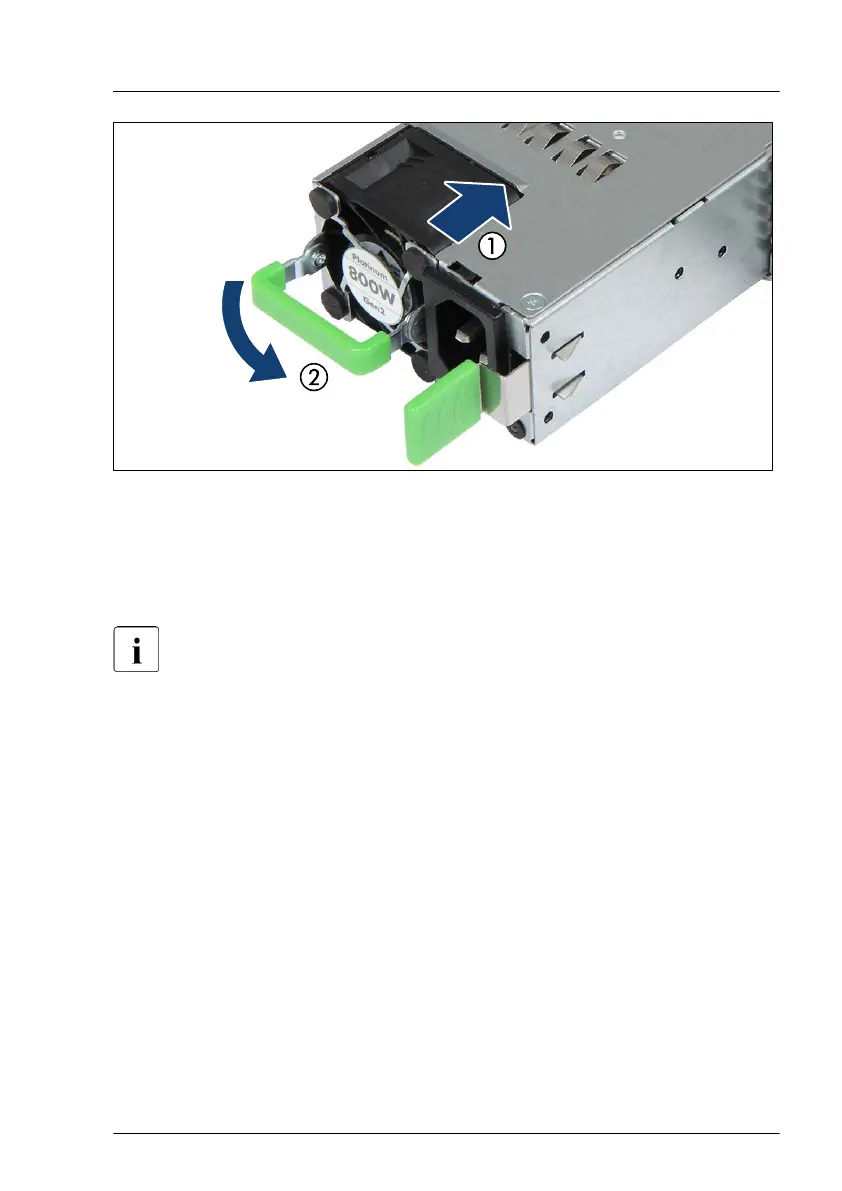

Figure 31: Installing the PSU
▶
Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
▶
Fold down the handle on the PSU (2).
Ensure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 107
