Fasten the 3.5-inch HDD with four screws.
Removing a 3.5-inch HDD from a 3.5-inch installation frame
▶
Please proceed in reversed order
.
Concluding steps
No steps needed.
7.4
3.5-inch HDD configurations
7.4.1 Overview of configurations
7.4.1.1 Configuration with up to four HDD modules
The HDD bays can be equipped with 3.5-inch HDD modules or 2.5-inch
HDD/SSD modules, see "2.5-inch HDD/SSD and 3.5-inch installation
frame" on page 136
.

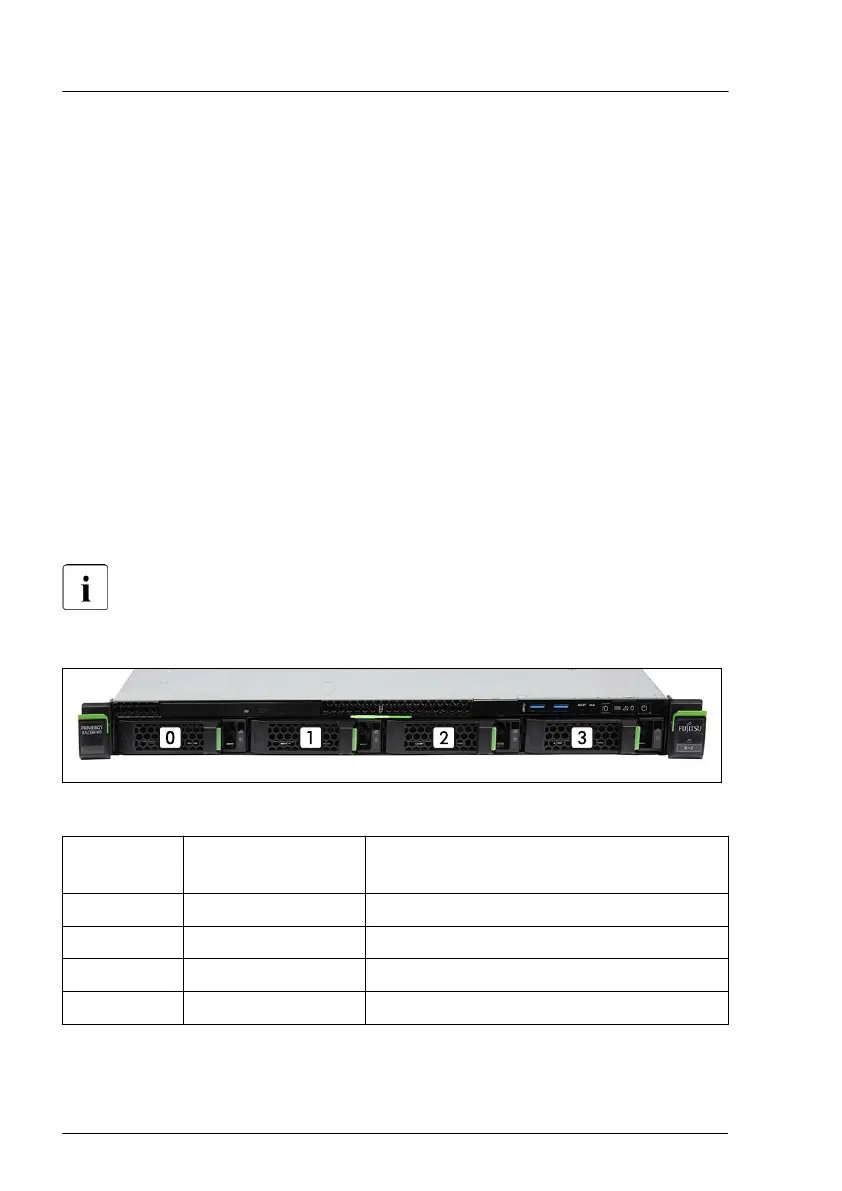

Figure 61: Configuration V101
Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
Hard disk drive (HDD) / solid state drive (SSD)
