Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

▶
Connect the FBU adapter cable to the TFM.
▶
Install the RAID controller
, see "Installing an expansion card" on page
196.
Concluding steps
▶
"Reassembling" on page 52.
▶
If applicable, connect external cables to the expansion card.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
9.5.6 Upgrading to the full height riser module
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver

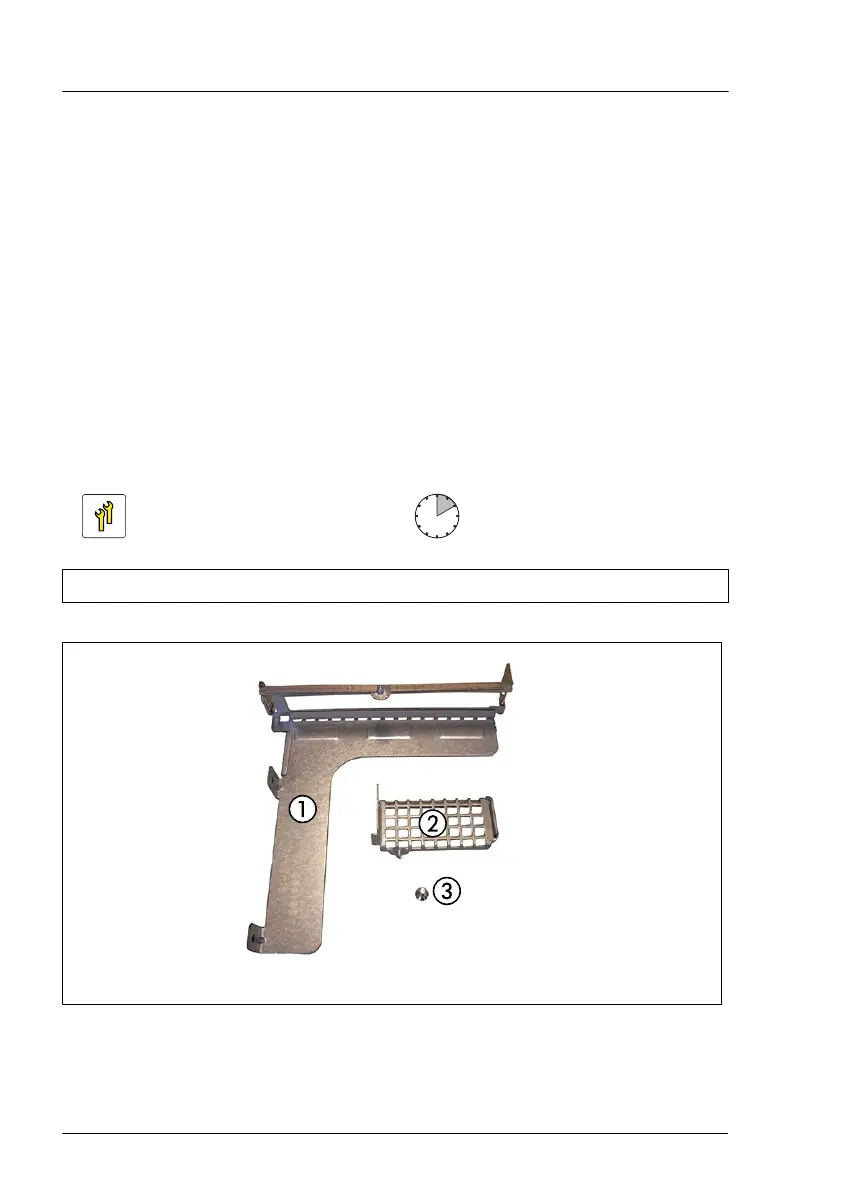

Figure 128: Upgrade kit
1 Full height riser module
2 Extension bracket
3
Screw
Expansion cards and backup units
214 Upgrade and Maintenance Manual RX1330 M4
