Fujitsu PRIMERGY RX1330 M4 - Configuration with up to Eight HDD;SSD Modules

7.5.1.2 Configuration with up to eight HDD/SSD modules

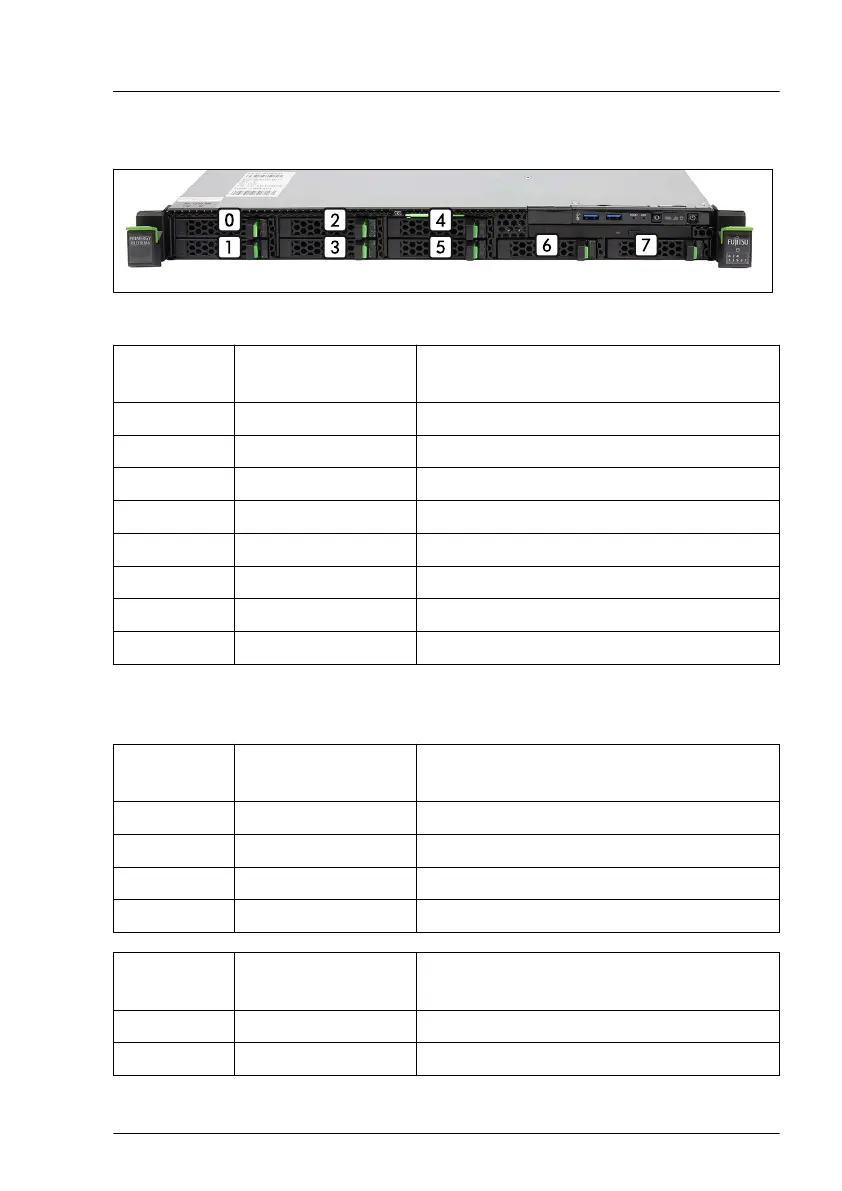

Figure 70: Configuration with up to eight HDDs/SSDs
Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
Configuration with the 4x 2.5-inch PCIe SSD backplane
Position Logical drive
number
ServerView RAID Manager display
name
[0] ‐ Vendor Product (0)
[1] ‐ Vendor Product (1)
[2] ‐ Vendor Product (2)
[3] ‐ Vendor Product (3)
Position Logical drive
number
ServerView RAID Manager display
name
[4] 4 Vendor Product (0)
[5] 5 Vendor Product (1)
Hard disk drive (HDD) / solid state drive (SSD)
