Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Removing the defective 4x 2.5-inch HDD backplane (right side) or PCIe
SSD backplane

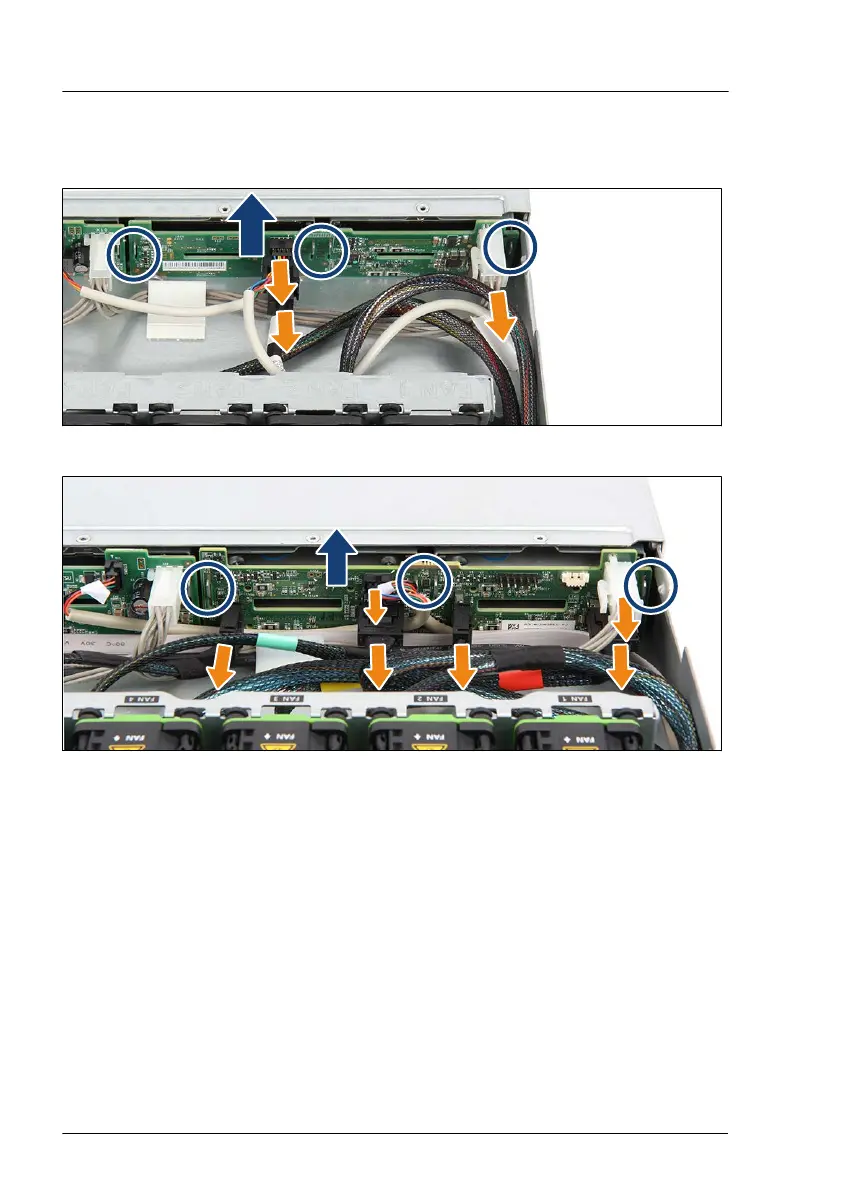

Figure 81: Removing the 4 x 2.5-inch HDD backplane
Figure 82: Removing the 4 x 2.5-inch PCIe SSD backplane
▶ Disconnect all cables from the HDD or PCIe SSD backplane (see orange
arrows).
▶ Pull the HDD or PCIe SSD backplane upward until the four hooks disengage
(see circles).
▶ Take out the HDD or PCIe SSD backplane.
Hard disk drive (HDD) / solid state drive (SSD)
164 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
