Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Installing the new 4x 2.5-inch HDD backplane (right side) or PCIe SSD
backplane

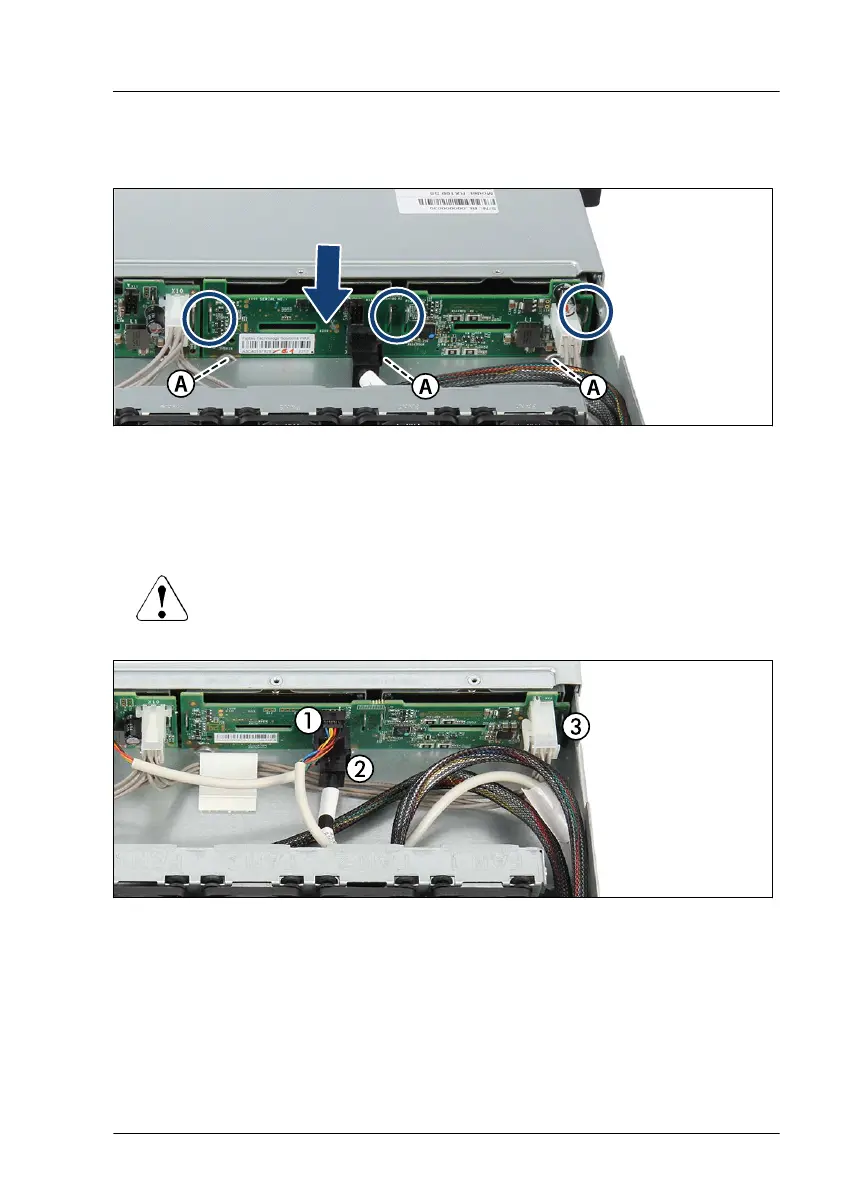

Figure 83: Installing the 4x 2.5-inch HDD backplane (right side)
▶
Position the HDD backplane on the four hooks (see circles).
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
into the guides (A).
CAUTION
▶
Ensure that none of the cables are strained or damaged!
Figure 84: Connecting cables to the 4 x 2.5-inch HDD backplane (right side)
1 OOB cable to connector "SMBus"
2 SAS cable to connector "X5"
3
Power cable
▶
Connect all cables to the HDD backplane.
Hard disk drive (HDD) / solid state drive (SSD)
RX1330 M4 Upgrade and Maintenance Manual 165

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
