6.5 Fujitsu battery unit (FJBU)
6.5.1 Installing an FJBU
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
No steps needed.
Removing the dummy cover
▶
Remove the dummy cover
, see "Removing the dummy cover" on page
105.
Installing an FJBU

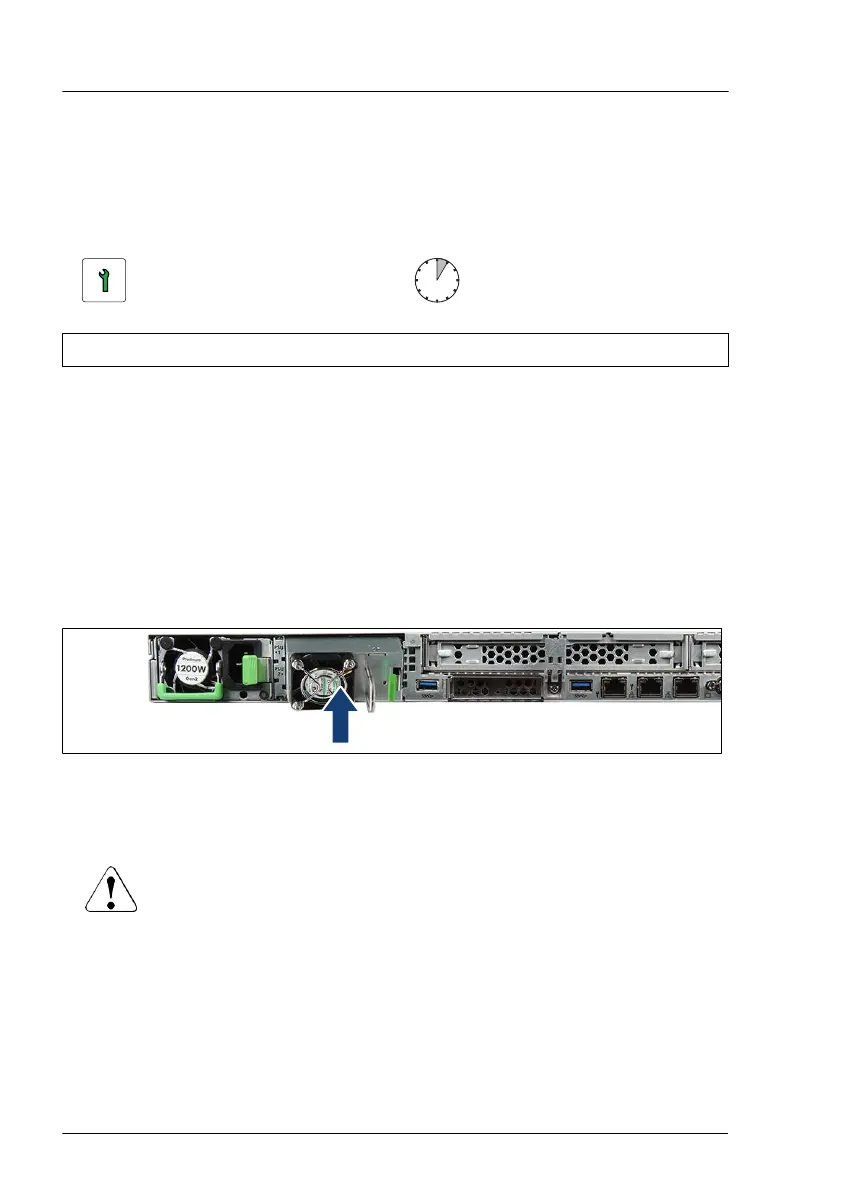

Figure 47: Installing an FJBU
▶
Push the FJBU into its bay as far as it will go until the locking latch snaps in
place.
CAUTION
▶
Ensure that the FJBU properly engages in its bay and is locked
in position in order to prevent it from sliding out of the chassis
during transportation.
Concluding steps
No steps needed.
Power supply unit (PSU)
124 Upgrade and Maintenance Manual RX1330 M4
