Example: EP4x0i

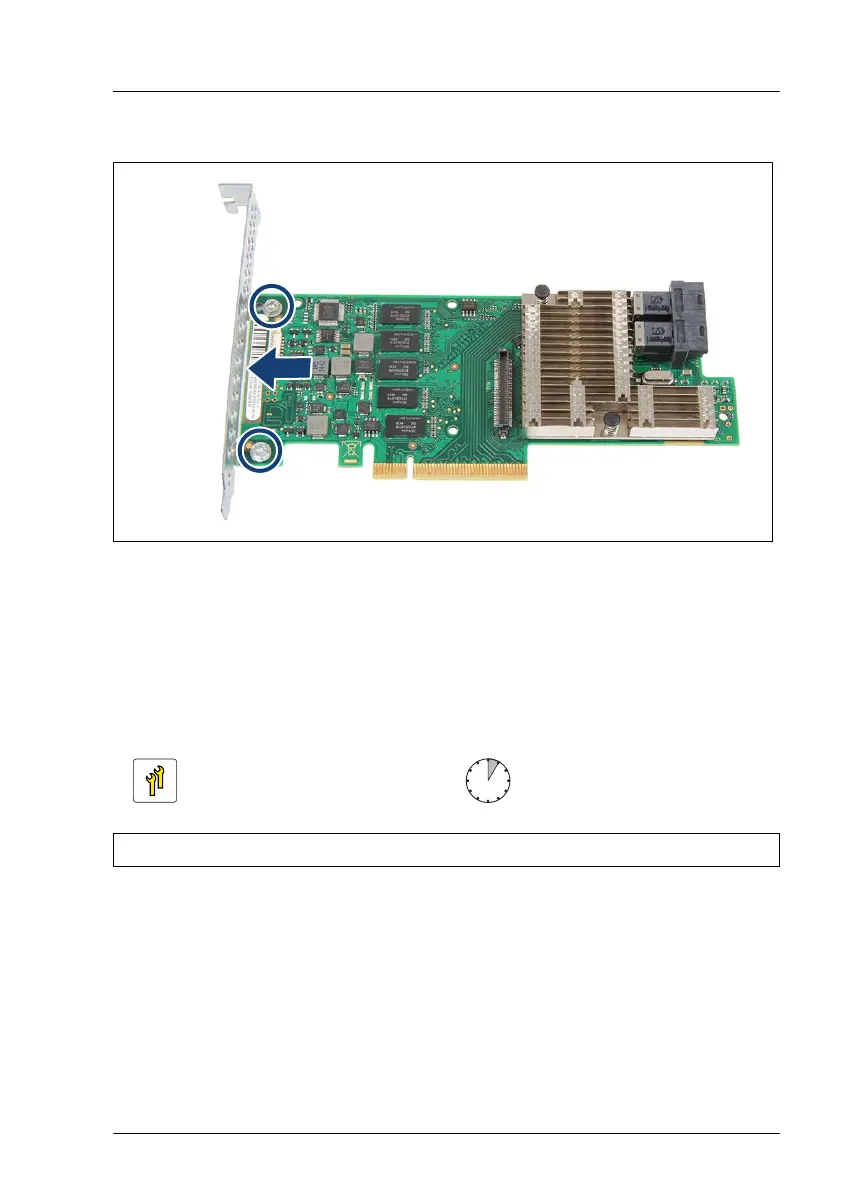

Figure 103: Placing the slot bracket
â–¶
Place the controller on the slot bracket.
â–¶
Secure the slot bracket to the expansion card with two screws (see circles).
9.3.2
Removing slot brackets
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Removing a slot bracket
â–¶
Remove the two screws.
â–¶
Remove the controller from the mounting tabs on the slot bracket.
Expansion cards and backup units
RX1330 M4 Upgrade and Maintenance Manual 187
