Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Removing an FJBU

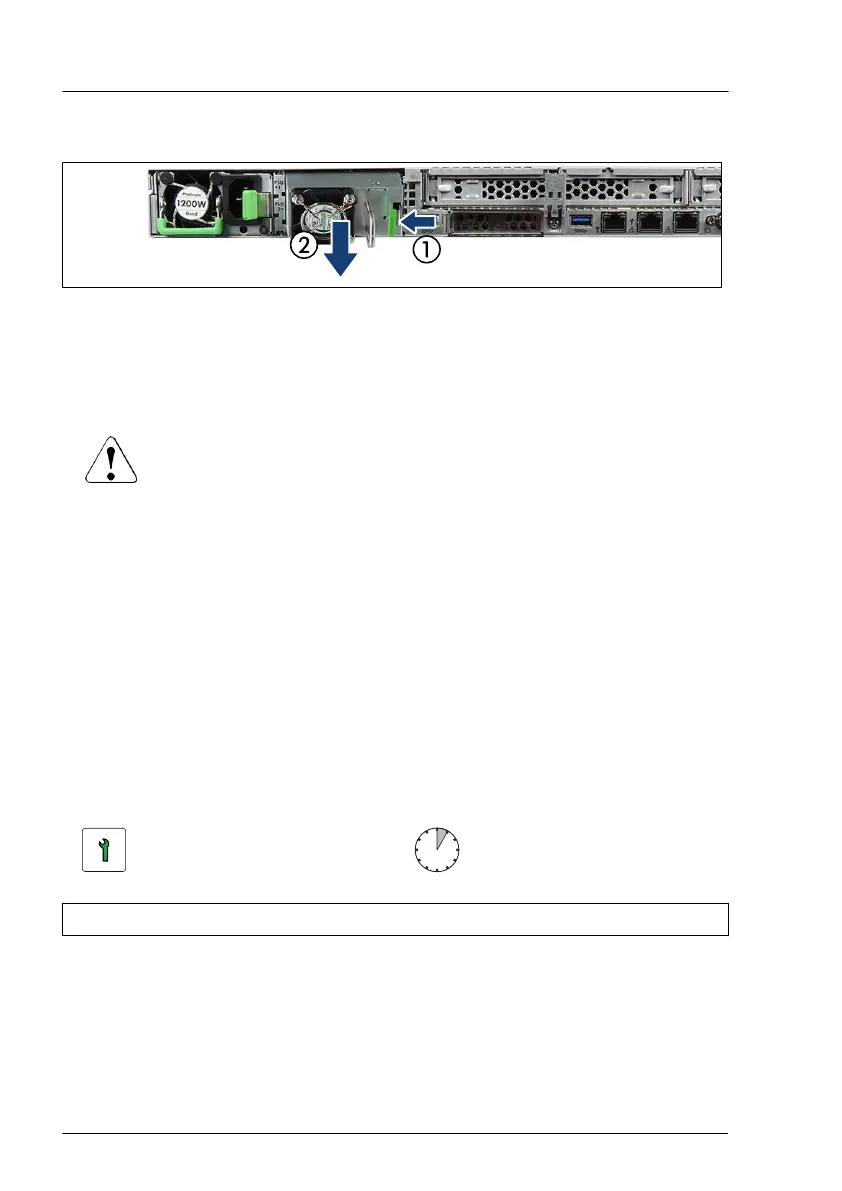

Figure 48: Removing an FJBU
▶
Press in on the green locking latch (1).
▶
While keeping the green locking latch pressed, pull the FJBU out of its bay
(2).
CAUTION
▶
Never leave the bay for the FJBU empty.
▶
Install a new FJBU or install the dummy cover.
Installing the dummy cover
▶
Install the dummy cover
, see
"Installing the dummy cover" on page 112.
Concluding steps
No steps needed.
6.5.3 Replacing an FJBU
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Note for servers using CMA (Cable Management Arm)
Regarding of removing the FJBU, additional tasks are needed, due to an
interference between CMA stopper and the FJBU.
Power supply unit (PSU)
126 Upgrade and Maintenance Manual RX1330 M4
