Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

4.5.3 Sliding the server into the rack





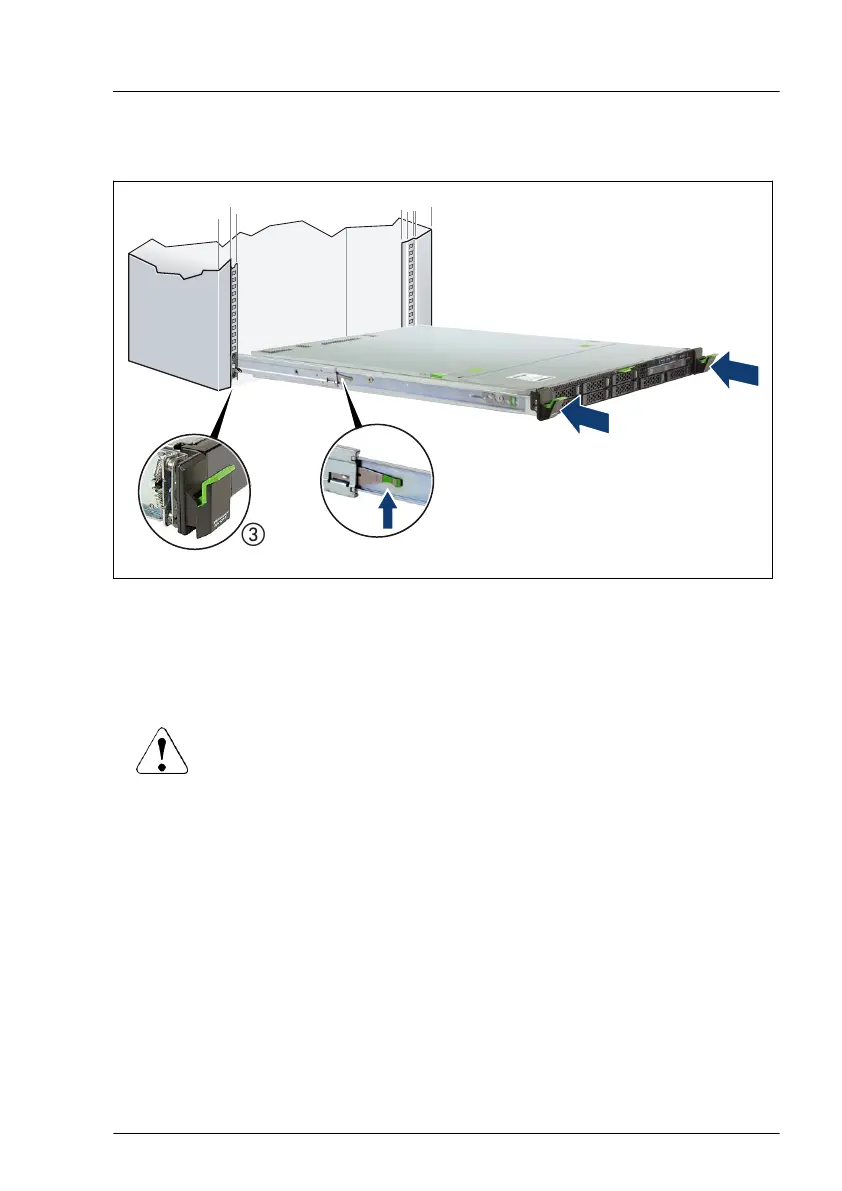

Figure 9: Sliding the server into the rack
▶
Release the locking mechanism of both rails (1).
▶
Push the server as far as it will go into the rack (2) until the quick-release
levers engage (3).
CAUTION
▶
Be careful with your fingers. You can pinch them when the quick
release levers change to the release position.
▶
Connect all cables except the power cord to the server rear
.
Basic hardware procedures
RX1330 M4 Upgrade and Maintenance Manual 55

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
