Push green touch points inside (1).
▶
Push the top cover as far as it will go in the direction of the arrow (2).
▶
Lift of
f the top cover upward (3).
4.5
Reassembling
CAUTION
▶
Before attaching the covers, make sure no unnecessary parts or
tools are left inside the server.
▶
The top cover must be replaced as soon as possible for purposes
of cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
▶
For more information, see "Important information" on page 29
.
4.5.1 Installing the top cover

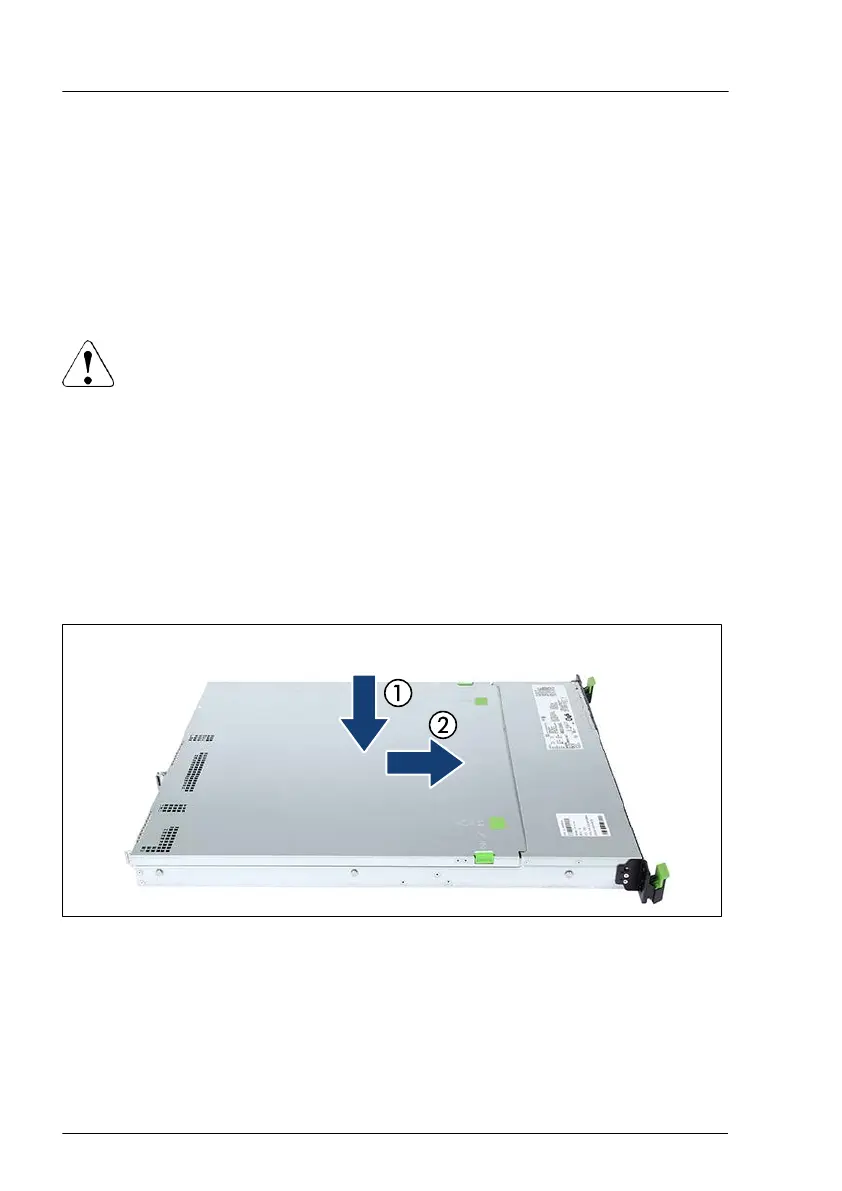

Figure 7: Installing the top cover
▶
Place the top cover on the server (1).
▶
Push the top cover as far as it will go in the direction of the arrow (2) until it
clicks in.
Basic hardware procedures
52 Upgrade and Maintenance Manual RX1330 M4
