Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual




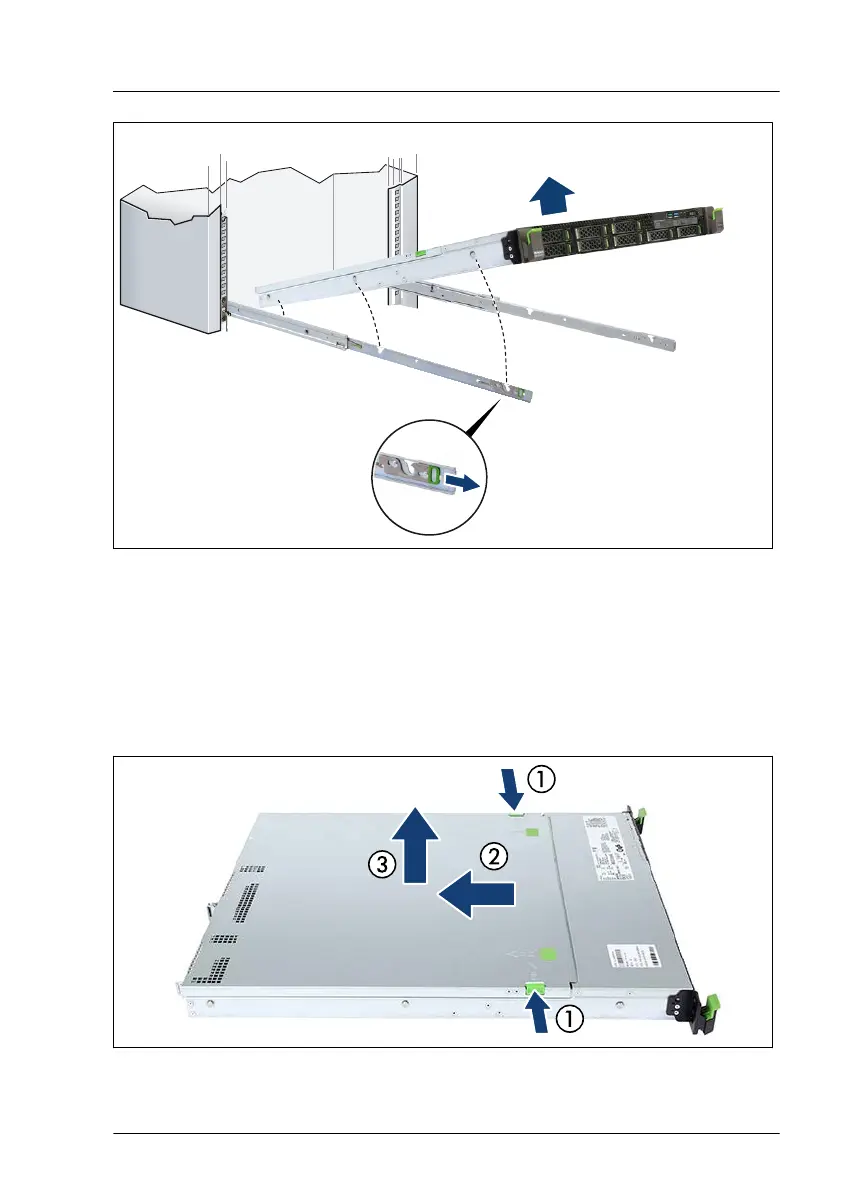

Figure 5: Removing the server from the rack
▶
Release the locking bars on both rack rails (1).
▶
Lift the server out of the rack rails (2) and place it on an even surface.
4.4.3
Removing the top cover
Figure 6: Removing the top cover
Basic hardware procedures
RX1330 M4 Upgrade and Maintenance Manual 51

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
