Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

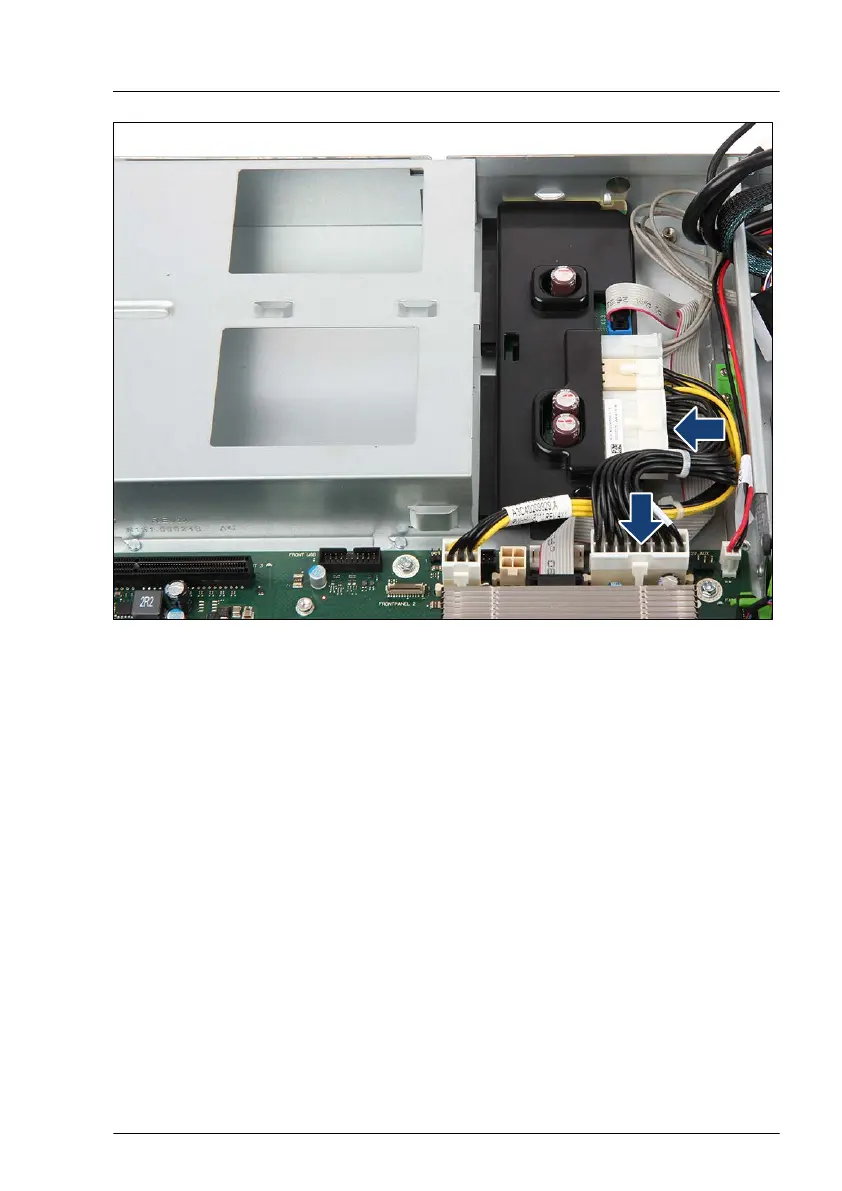

Figure 46: Connecting power cables (C)
▶
Connect the power cable to the system board and the power distribution
board.
▶
Install the PSUs, see "Installing a hot-plug PSU" on page 105
.
Concluding steps
▶
"Reassembling" on page 52.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 58.
▶
"Resuming BitLocker functionality" on page 86.
Power supply unit (PSU)
RX1330 M4 Upgrade and Maintenance Manual 123

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
