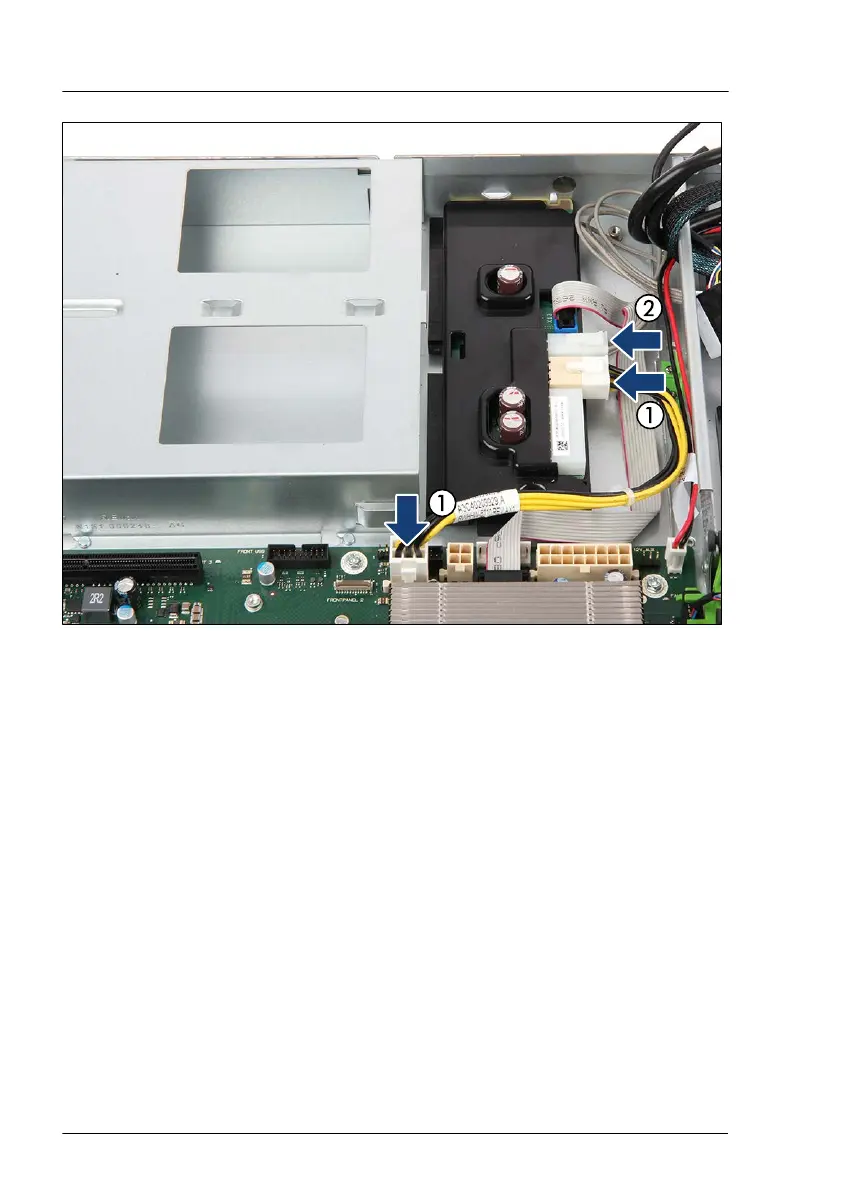

Figure 45: Connecting cables (B)

▶

Connect the power cable to the system board and the power distribution

board (1).

▶

Connect the HDD power cable to the power distribution board (2).

Power supply unit (PSU)

122 Upgrade and Maintenance Manual RX1330 M4
