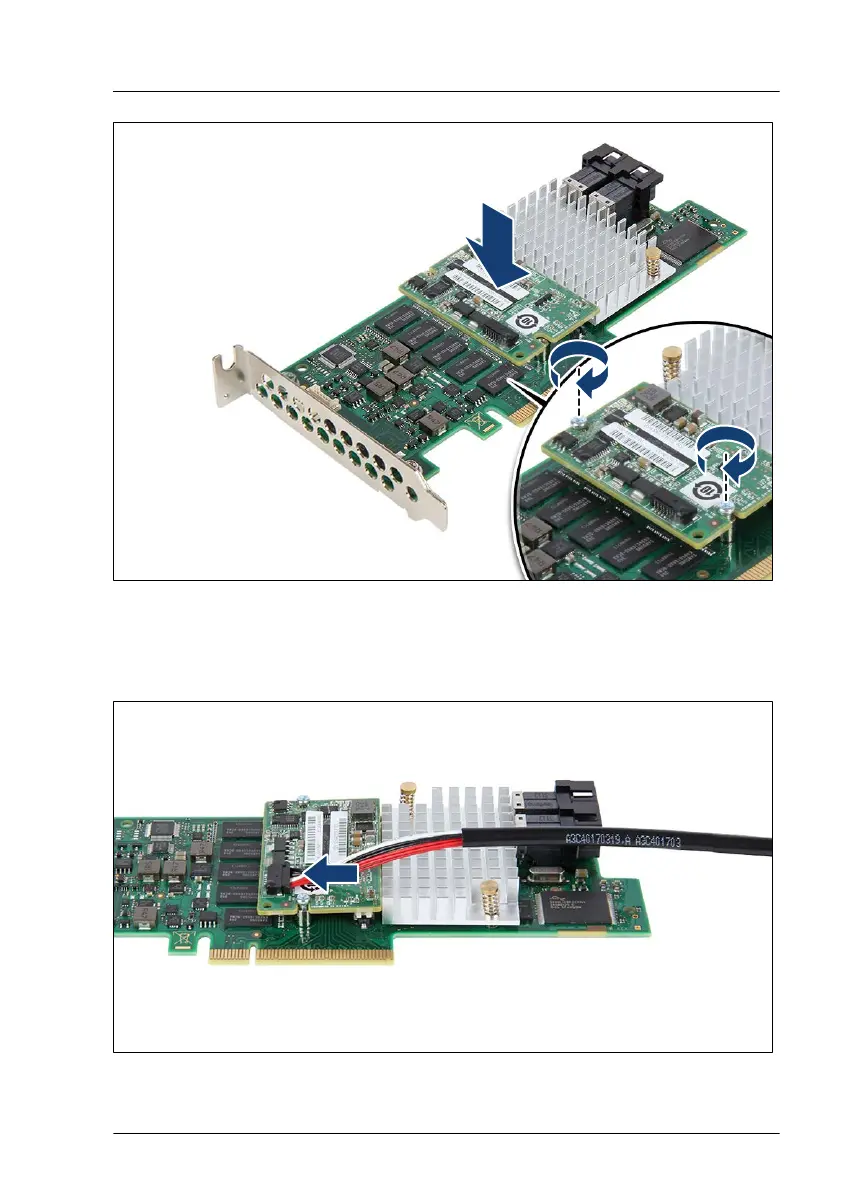

Figure 126: Installing the TFM (B)

▶

Fasten the TFM on the RAID controller with the two screws from the TFM

kit.

Figure 127: Connecting the FBU adapter cable

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 213
