Installing a 3.5-inch HDD module

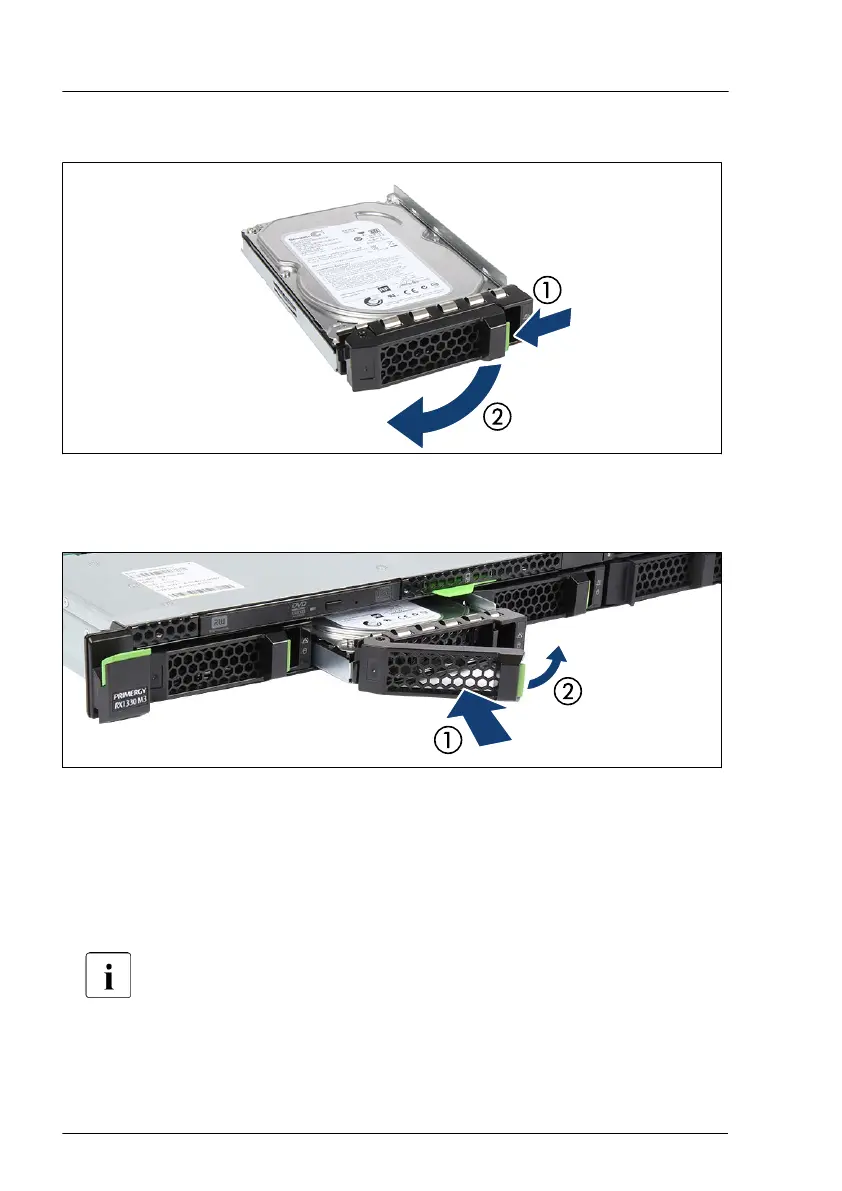

Figure 63: Opening the locking lever
▶
Pinch the green locking clip (1) and open the locking lever (2).
Figure 64: Installing the 3.5-inch HDD module
▶
Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
▶
Close the locking lever to lock the HDD module in place (2).
▶
When using a RAID array
, add the additional HDD to the RAID array
.
Configuring the RAID array, refer to the documentation of the RAID
controller, used in your configuration, see "Documentation overview"
on page
26.
