Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Tools: tool-less
Preliminary steps
▶
Locate the correct drive bay, see 150
.
Removing a 2.5-inch HDD/SSD dummy module
In configuration with only one 4x 2.5-inch HDD backplane dummy locks
are installed to make it impossible to equip the bays with no HDD
backplane behind.

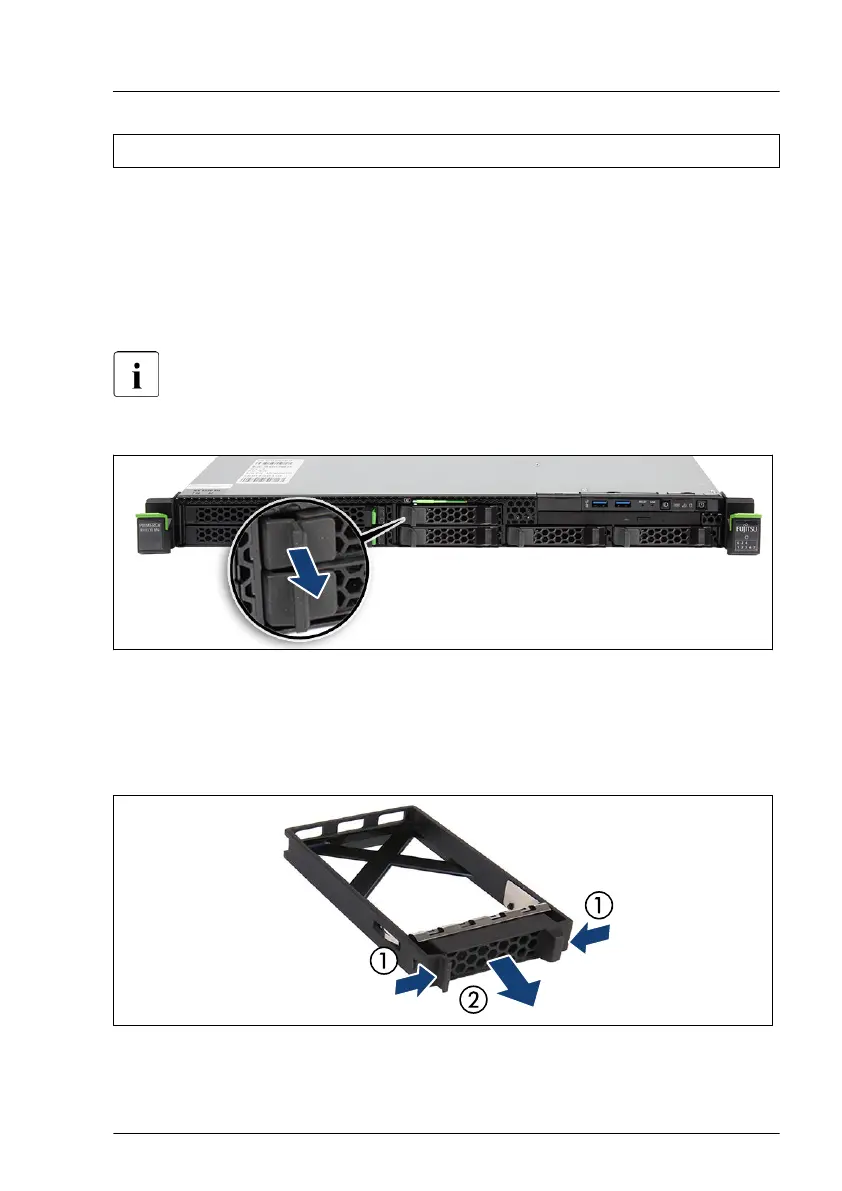

Figure 72: Removing the dummy lock
▶
Only valid after upgrading the server with the second HDD backplane:
Pull the dummy lock out of the dummy cover
. Please be aware that the
dummy lock can be damaged.
Figure 73: Removing the 2.5-inch dummy module
Hard disk drive (HDD) / solid state drive (SSD)
RX1330 M4 Upgrade and Maintenance Manual 153

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
