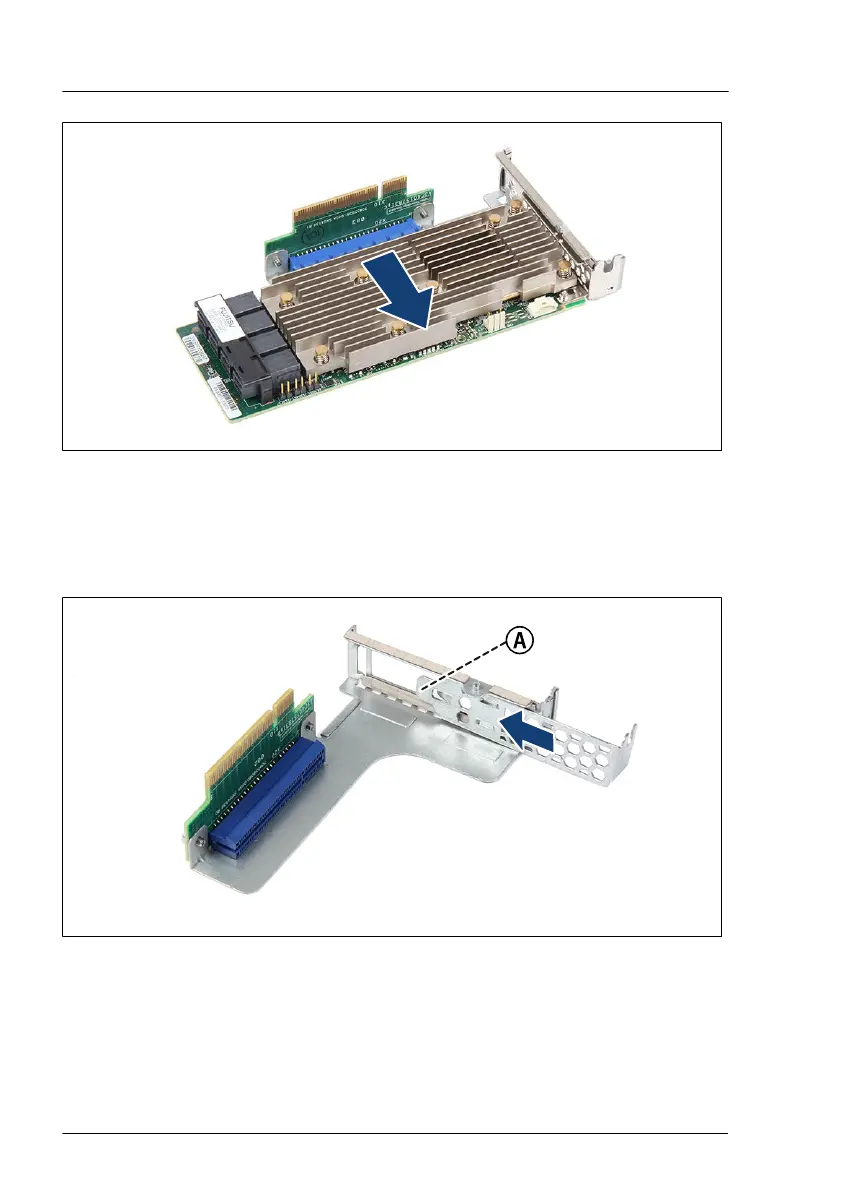

Figure 119: Removing the expansion card - example riser module 1
▶
Pull out the expansion card from the riser card slot.
Installing the slot cover
Figure 120: Installing the slot cover - example riser module 1
▶
Insert the slot cover.
▶
Ensure that the lug on the slot cover (A) clicks into place in the
corresponding hole.
Expansion cards and backup units
204 Upgrade and Maintenance Manual RX1330 M4
