Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Removing the riser card
▶
Remove the expansion card, see "Removing an expansion card" on
page 203
.

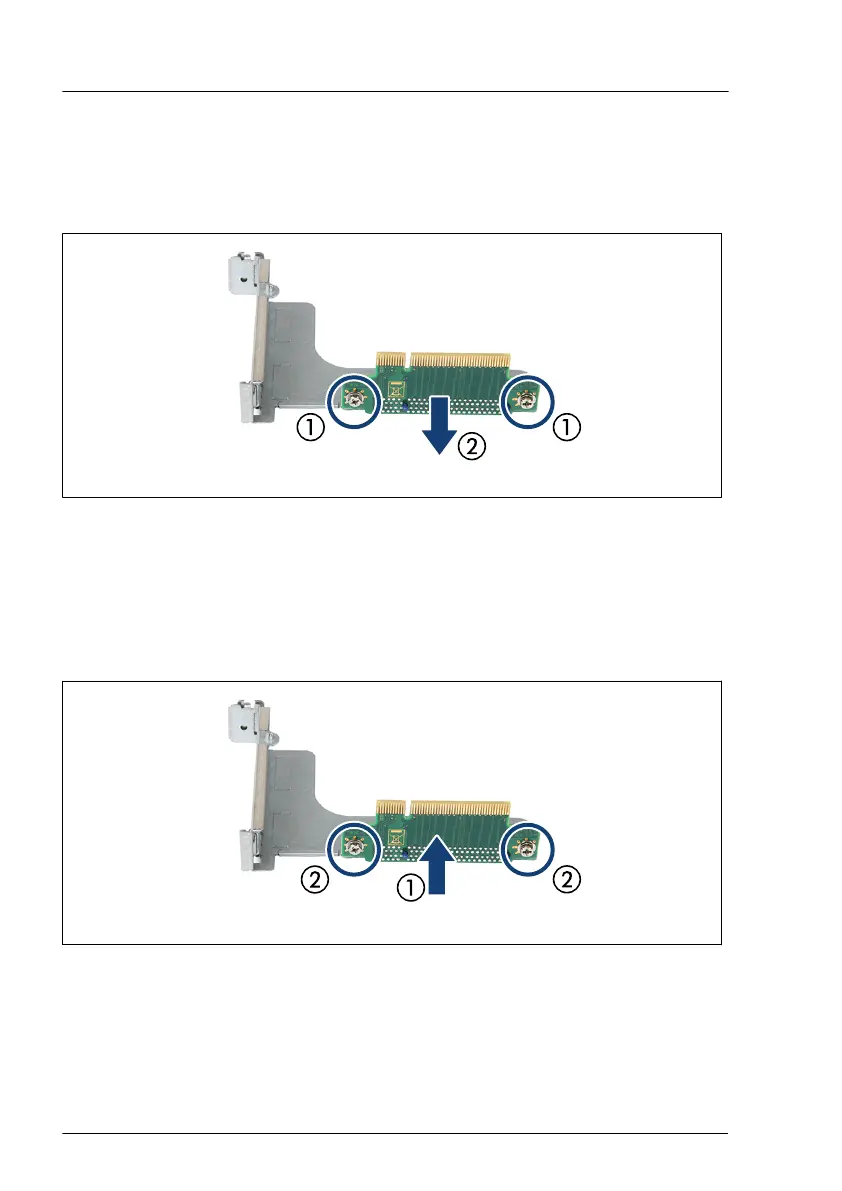

Figure 121: Removing the riser card - example riser module 1
▶
Remove the two screws (1).
▶
Remove the riser card (2).
Installing the riser card
Figure 122: Installing the riser card - example riser module 1
▶
Insert the riser card (1).
▶
Fasten the riser card with two screws (2).
▶
Install the expansion card, see "Installing an expansion card" on page
196.
Expansion cards and backup units
208 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
