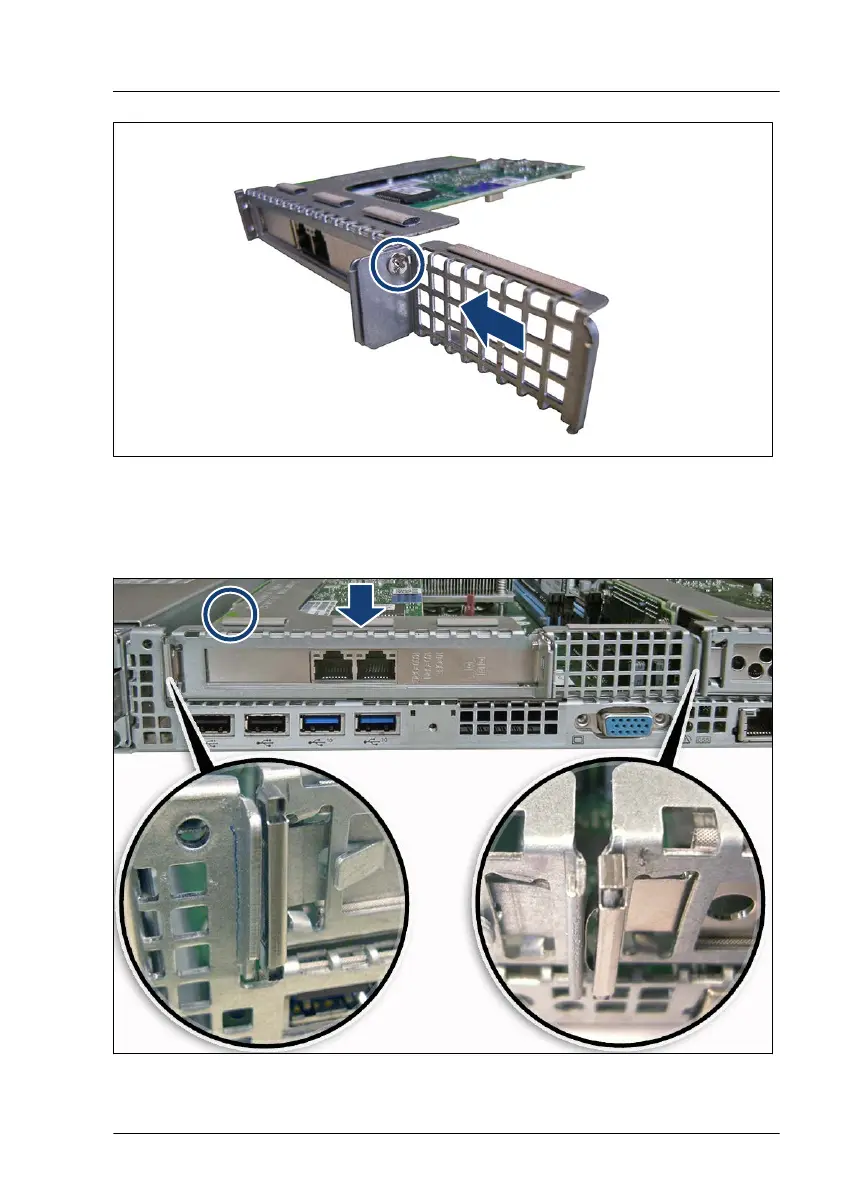

Figure 132: Installing the extension bracket

▶

Fasten the extension bracket with one screw to the full height riser module

(see circle).

Figure 133: Installing the full height riser module

Expansion cards and backup units

RX1330 M4 Upgrade and Maintenance Manual 217
