Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

Preliminary steps
▶
"Suspending BitLocker functionality" on page 65
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
▶
"Removing the air duct" on page 63.
Selecting the memory slot
▶
Choose the memory slot according to the configuration rules, see "Basic
informations " on page 234.
Installing a memory module

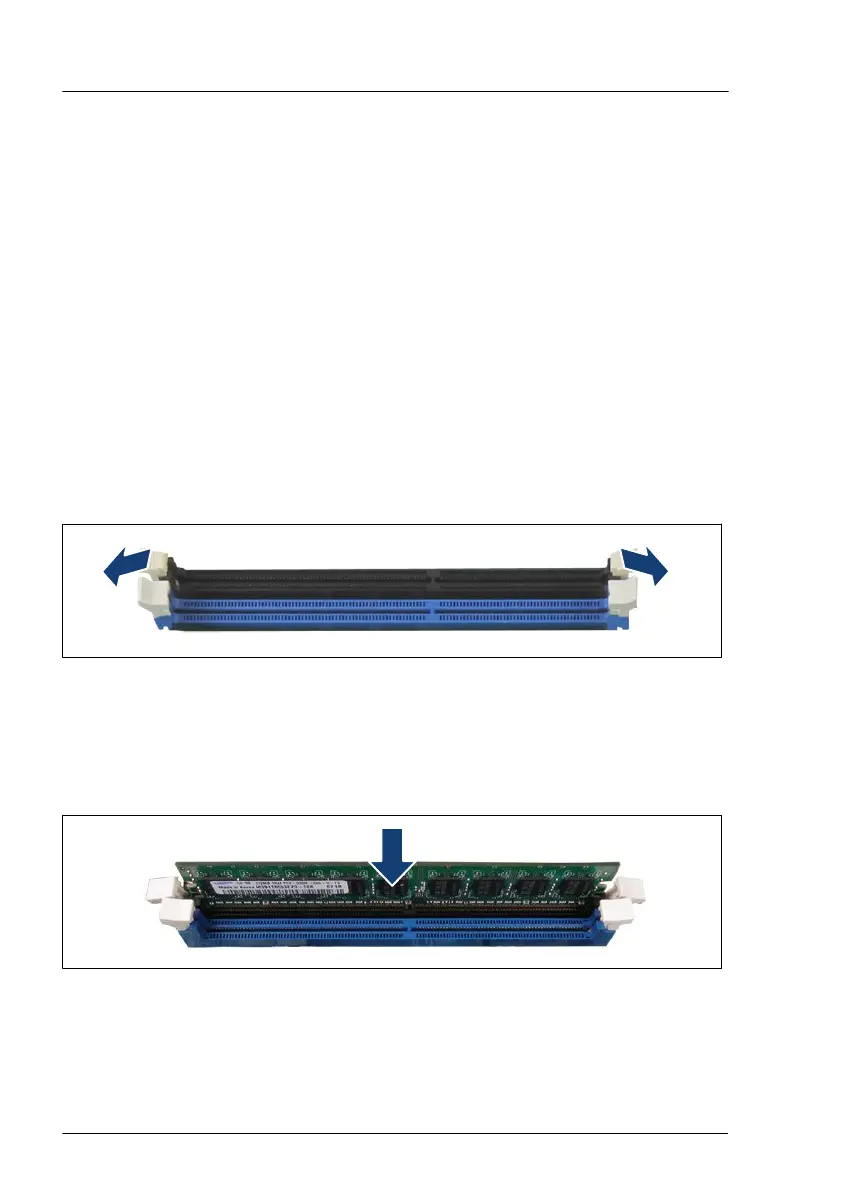

Figure 147: Opening the securing clips
▶
Press the securing clips on both sides of the memory slot concerned
outward.
▶
If applicable, remove the dummy module.
Figure 148: Installing a memory module
Main memory
236 Upgrade and Maintenance Manual RX1330 M4

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
