Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

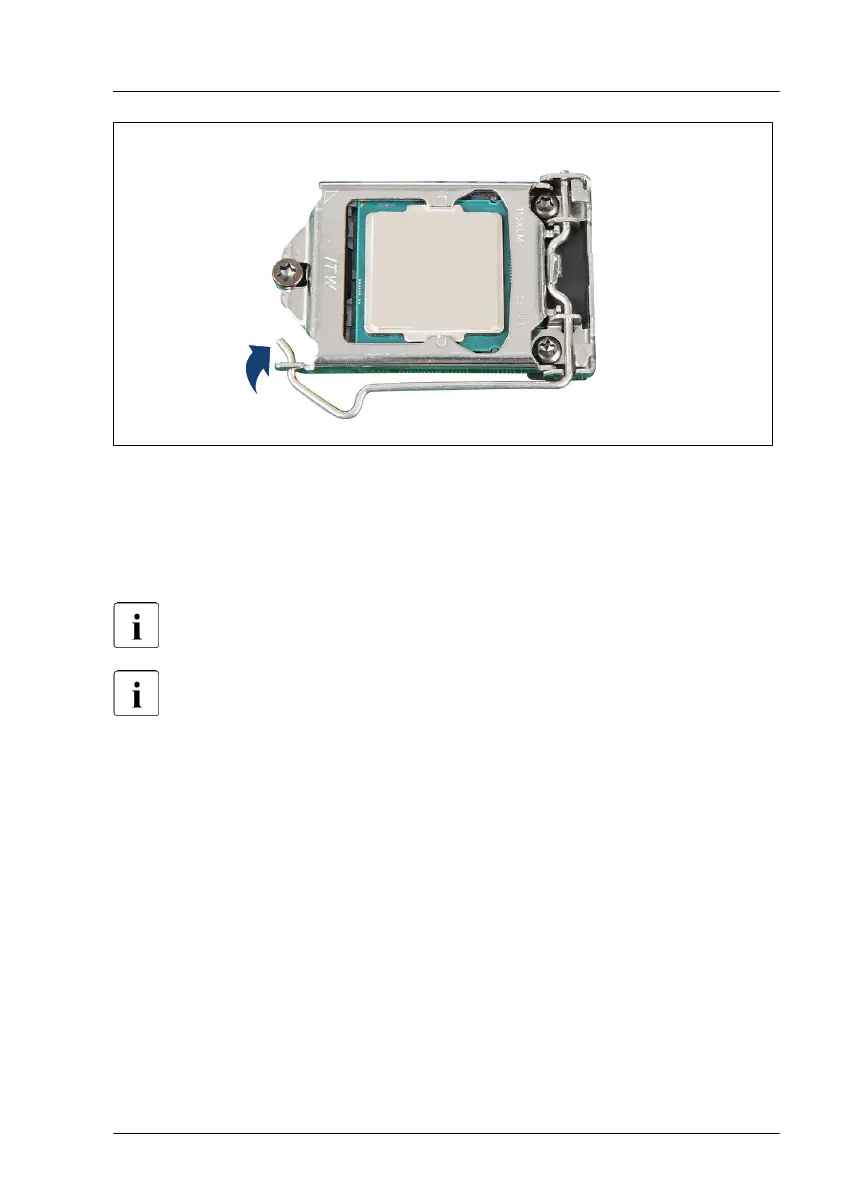

Figure 160: Latching the socket release lever
▶
Latch the socket release lever under the load plate tab.
Applying thermal paste to the CPU surface
For Japan, the service engineer must follow the instruction provided
separately
.
If the CPU upgrade or replacement kit contains a new heat sink, a thin
layer of thermal compound has already been pre-applied to its lower
surface. In this case, it isn’t necessary to apply thermal paste to the
CPU surface.
Processor (CPU)
RX1330 M4 Upgrade and Maintenance Manual 249

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
