Indicator Status Description
G - Memory off Memory module running
orange on Memory module failure
H - iRMC off iRMC S5 inactive
flashing green iRMC S5 okay
I - Fan off System fan running
orange on System fan failure
K - Standby
Power
orange on All standby voltages OK
O - M.2 SSD orange on M.2 SSD faulty
16.2.2 Server front
16.2.2.1 Indicators on the front panel

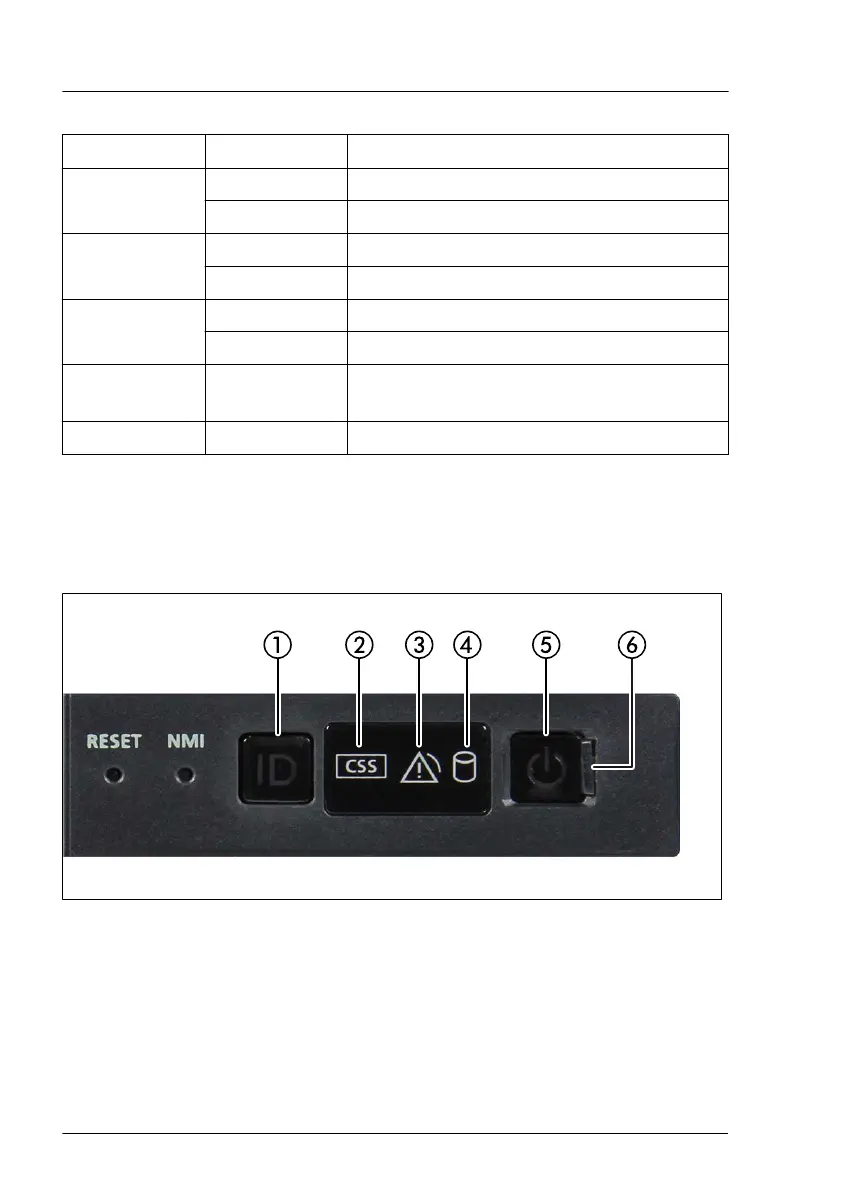

Figure 240: Indicators on the front panel module
1 ID indicator
2 CSS indicator
3
Global Error indicator
4 HDD/SSD activity indicator
5 Power-on indicator
6 AC connected indicator
Appendix A
346 Upgrade and Maintenance Manual RX1330 M4
