Fujitsu PRIMERGY RX1330 M4 Upgrade And Maintenance Manual

11RX1330 M4

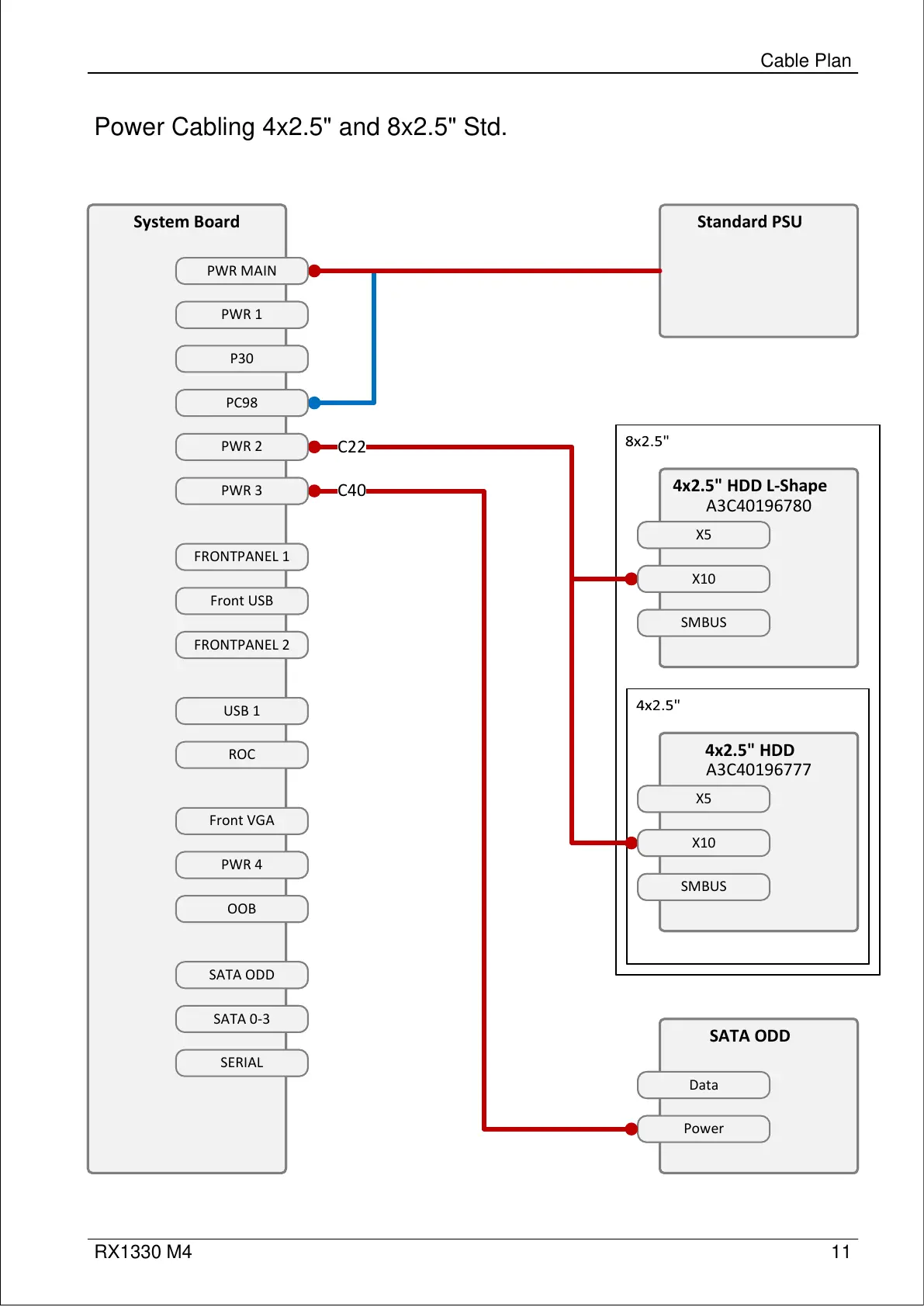

Power Cabling 4x2.5" and 8x2.5" Std.
Cable Plan
SATA ODD
Data
Power
SATA ODD
Data
Power
C40
C22
Standard PSU
4x2.5" HDD L-Shape
X5
X10
SMBUS
A3C40196780
4x2.5" HDD L-Shape
X5
X10
SMBUS
A3C40196780
4x2.5" HDD
X5
X10
SMBUS
A3C40196777
4x2.5" HDD
X5
X10
SMBUS
A3C40196777
System Board
PWR MAIN
PWR 1
P30
PWR 2
PWR 3
FRONTPANEL 1
Front USB
FRONTPANEL 2
USB 1
Front VGA
PWR 4
OOB
SATA ODD
SATA 0-3
SERIAL
PC98
ROC
System Board
PWR MAIN
PWR 1
P30
PWR 2
PWR 3
FRONTPANEL 1
Front USB
FRONTPANEL 2
USB 1
Front VGA
PWR 4
OOB
SATA ODD
SATA 0-3
SERIAL
PC98
ROC

Fujitsu PRIMERGY RX1330 M4 Specifications

General

Chipset	Intel C246
Processor	Intel Pentium, Intel Celeron
Memory Type	DDR4
Memory	Up to 64 GB
Memory Slots	4 DIMM slots
Drive Bays	4 x 3.5-inch or 8 x 2.5-inch
Network	2x 1GbE onboard, optional additional NICs
Power Supply	450W
Form Factor	1U
RAID Controller	optional SAS RAID controller
