Pull out on the locking lever on the cable tie (1) and loosen the loop (2).
▶
Disconnect the power cord from the PSU and remove it from the cable tie.
Redundant power supply

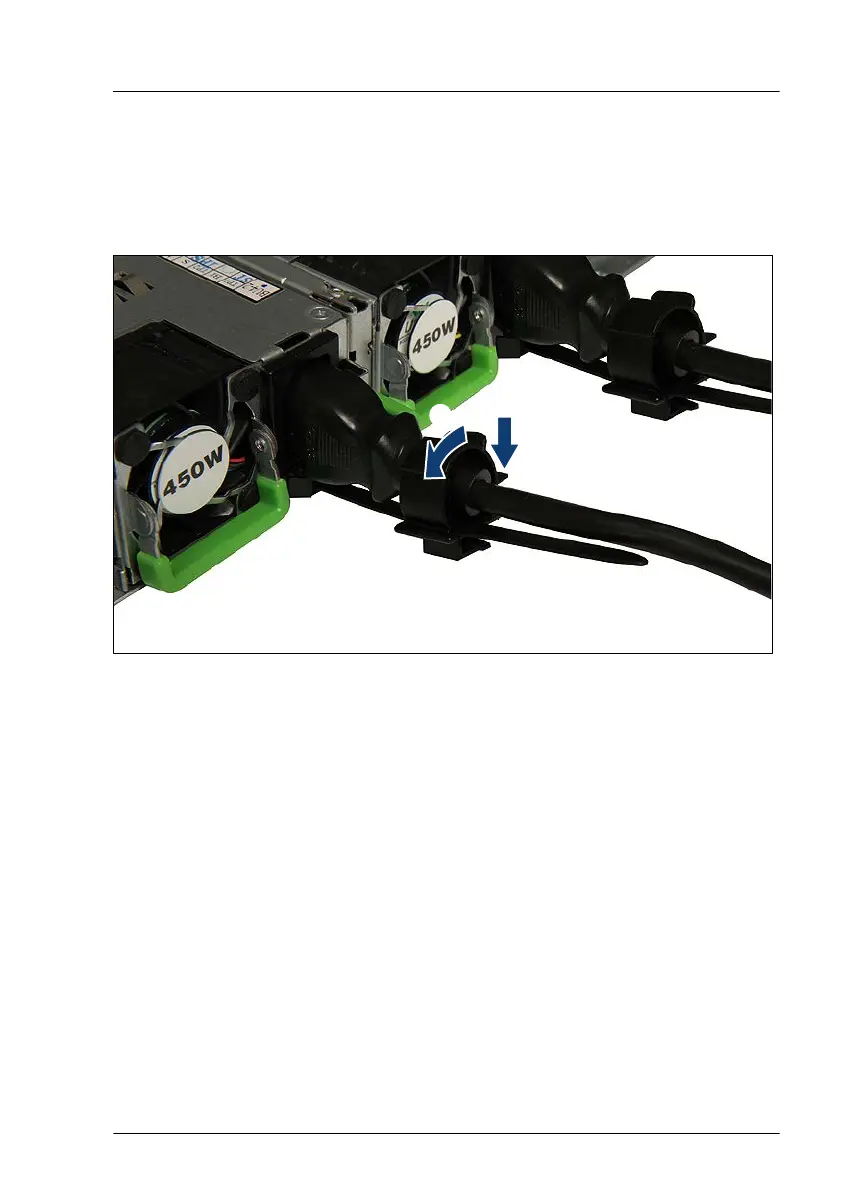

Figure 3: Unlocking the cable clamp of a PSU
▶
Press the cable clamp down until it disengages (1).
▶
Open the cable clamp (2).
▶
Disconnect the power cord from the PSU and remove it from cable clamp.
Basic hardware procedures
RX1330 M4 Upgrade and Maintenance Manual 47
