Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)
7.3.9 Installing 3.5-inch HDD modules
7.3.9.1 Preliminary steps
Ê
When working on a tower server, open the HDD bay cover as described in
section "Removing accessible drive and HDD bay covers" on page 71.
Ê
Locate the correct drive bay as described in section "3.5-inch HDD
configurations" on page 206.
7.3.9.2 Removing a 3.5-inch HDD dummy module

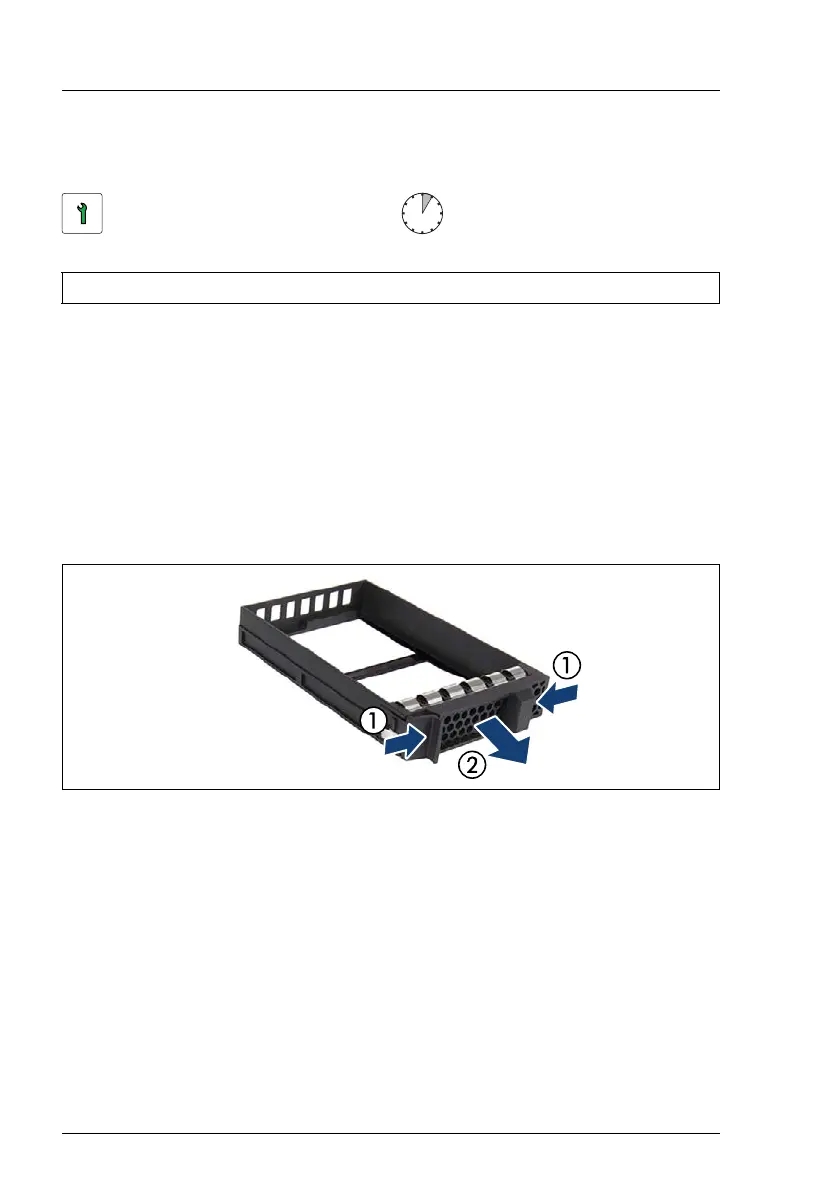

Figure 132: Removing a 3.5-inch dummy module
Ê
Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools:
tool-less
