TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
221
Hard disk drive (HDD) / solid state drive (SSD)
For further information, please refer to the "ServerView Suite RAID
Management" user guide.
Ê
When working on a tower server, open the HDD bay cover as described in
section "Removing accessible drive and HDD bay covers" on page 71.
7.3.10.2 Removing a 3.5-inch HDD module
Ê
Pinch the green locking clips and open the locking lever (see figure 133 on
page 219).
Ê
Pull the HDD module out a few centimeters.
Ê
Wait about 30 seconds to allow the HDD to spin down.
I
This period is necessary for the RAID controller to recognize that an
HDD module has been removed and for the HDD to come to a stop.
Ê
Pull the HDD module completely out of its bay.
7.3.10.3 Installing a 3.5-inch HDD dummy module
V CAUTION!
If the removed HDD module is not replaced immediately, always replace
a dummy module into the unused HDD bay to comply with applicable
EMC regulations and satisfy cooling requirements.

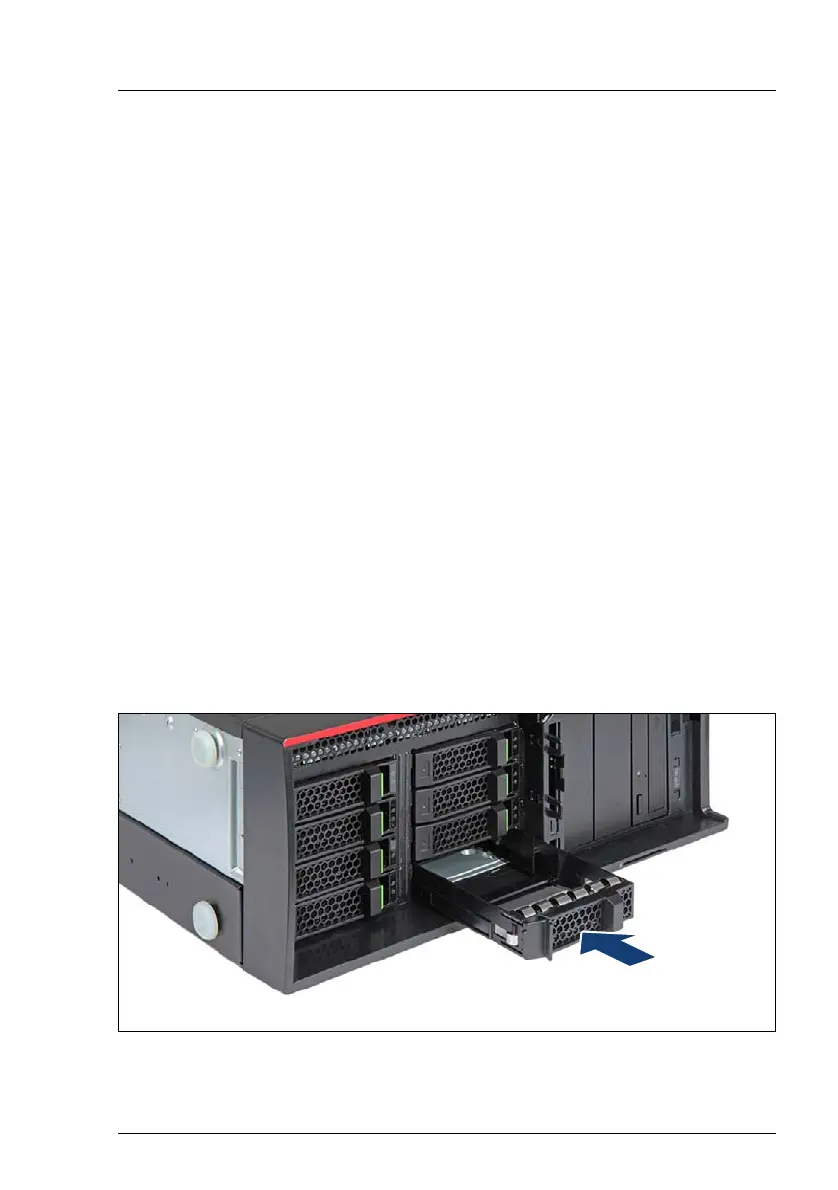

Figure 135: Installing a 3.5-inch HDD dummy module
Ê
Push the dummy module into the empty bay until it engages.
