Fujitsu PRIMERGY RX2560 M2 - Removing the Defective System Board

486 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
System board and components
14.7.1.2 Removing the defective system board
Ê
Disconnect all cables from the system board.

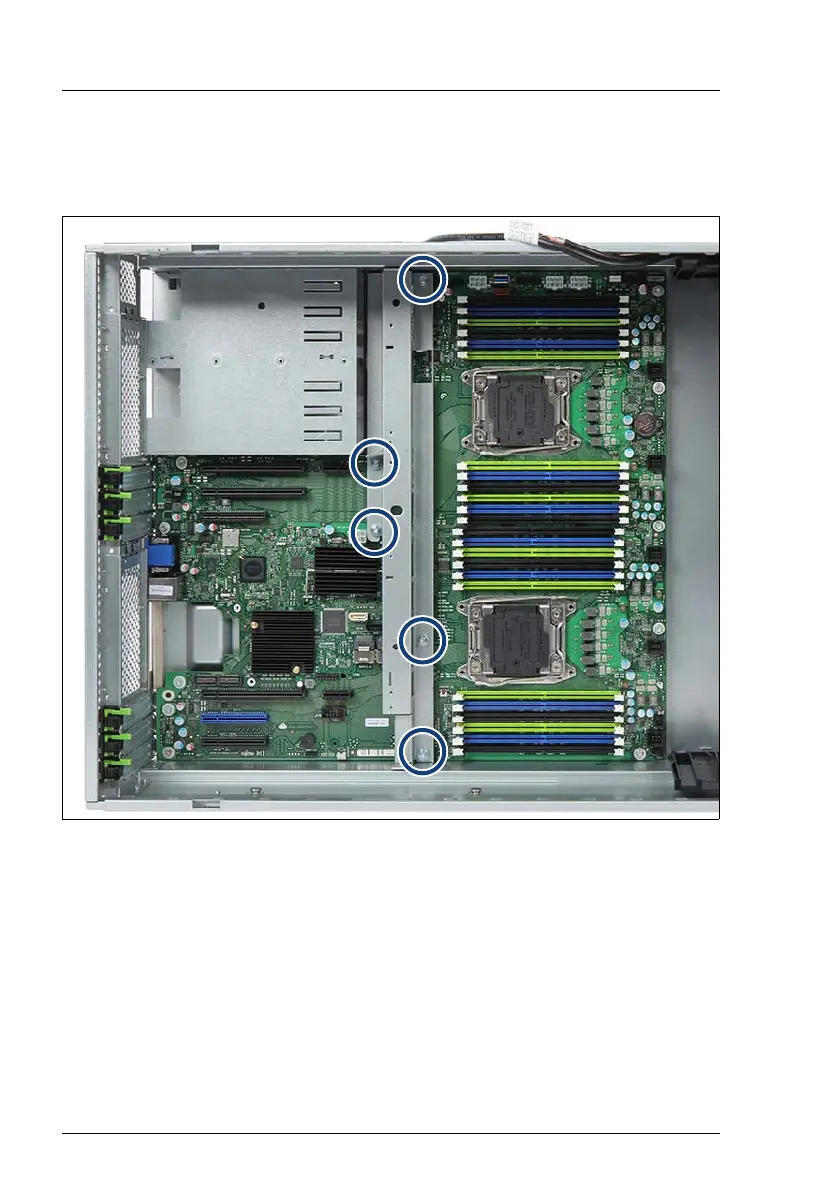

Figure 361: Removing the crossbar
Ê Remove the five screws of the crossbar (see circles).
Ê Remove the crossbar.
