TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
469
System board and components
Ê
"Removing the system air duct" on page 91
Ê
"Removing the system fan holder" on page 93
14.4.2.2 Removing the TPM
Ê
Remove the system board as described in section "Removing the defective
system board" on page 486.
Ê
Lay the system board on a soft, antistatic surface with its component side
facing down.

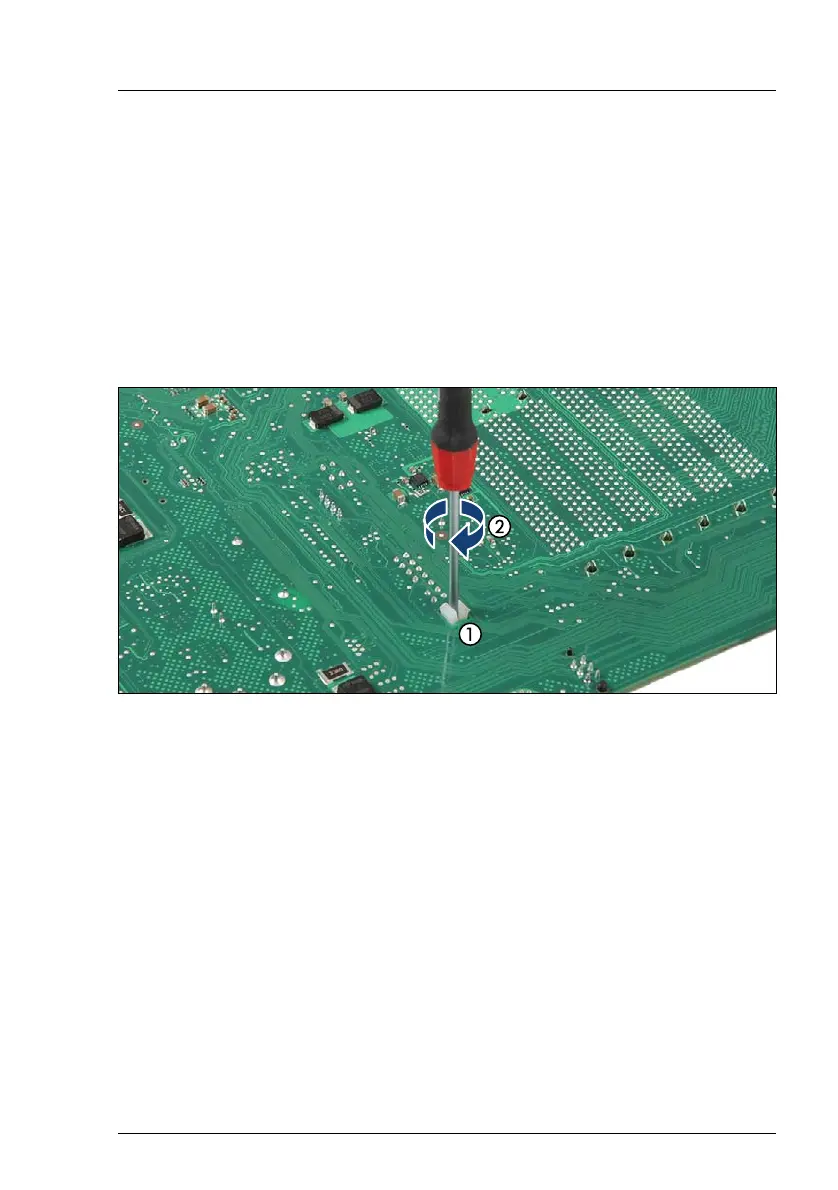

Figure 352: Removing the TPM screw
Ê
Locate the slotted lower end of the TPM screw (1).
Ê
Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (Japanese
market) (2).
V CAUTION!
Ensure to turn the screw
clockwise
in order to remove it!
Slowly and carefully increase the pressure on the screw until it begins
to turn. The effort when loosing the screw should be as low as
possible.
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê
Remove the TPM screw.
