Fujitsu PRIMERGY RX2560 M2 - Tower Server (TX2560 M2); Unlocking the Server

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 69
Basic hardware procedures
4.4.2 Tower server (TX2560 M2)
4.4.2.1 Unlocking the server

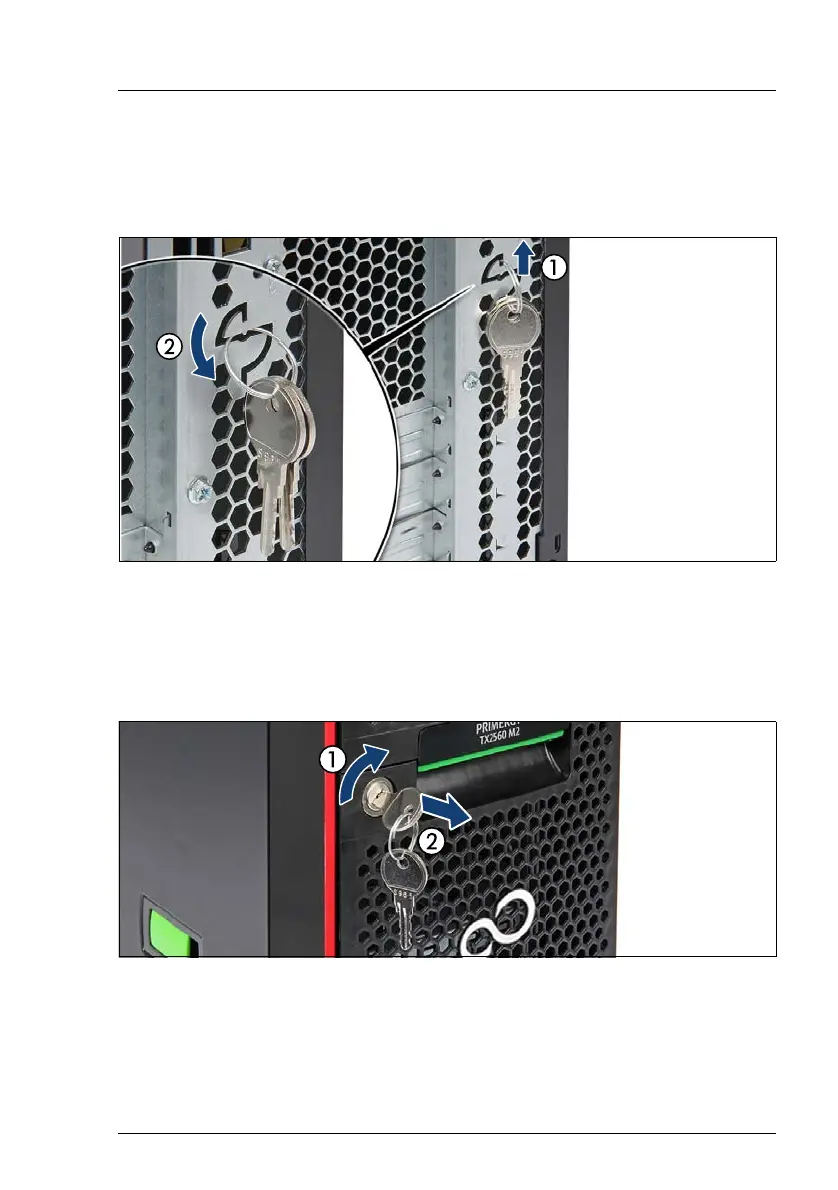

Figure 13: Removing the key
Ê Lift the key ring to unlatch it (1).
Ê Turn the key ring counter-clockwise by 90 degrees (2).
Ê Remove the key ring with keys from the server rear.
Figure 14: Unlocking the server
Ê Insert the key into the lock on the server front.
Ê Turn the key clockwise to unlock the front and side covers (1).
Ê Remove the key from the server front (2) and set aside for later use.
