Fujitsu PRIMERGY RX2560 M2 - Page 254

254 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

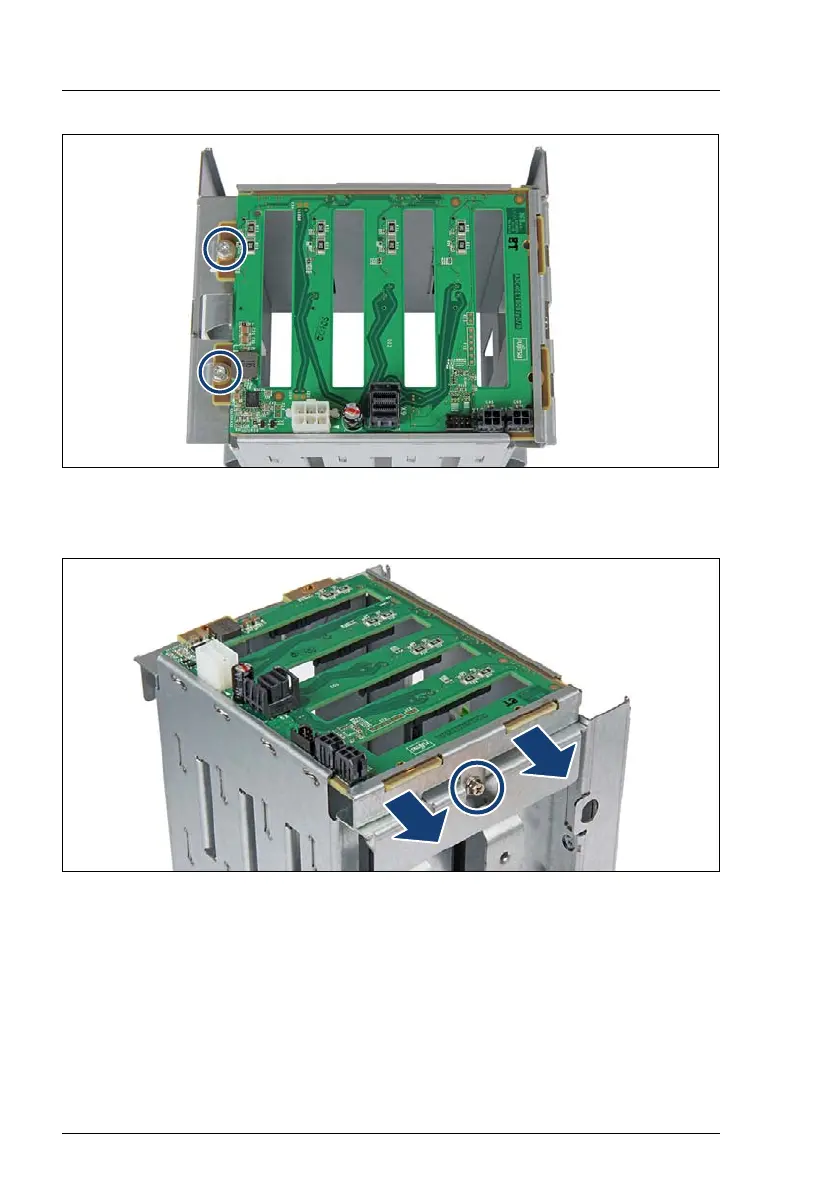

Figure 164: Removing the HDD backplane (A)
Ê Remove the two screws (see circles).
Figure 165: Removing the HDD backplane (B)
Ê Remove the screw (see circle).
Ê Remove the bracket.
