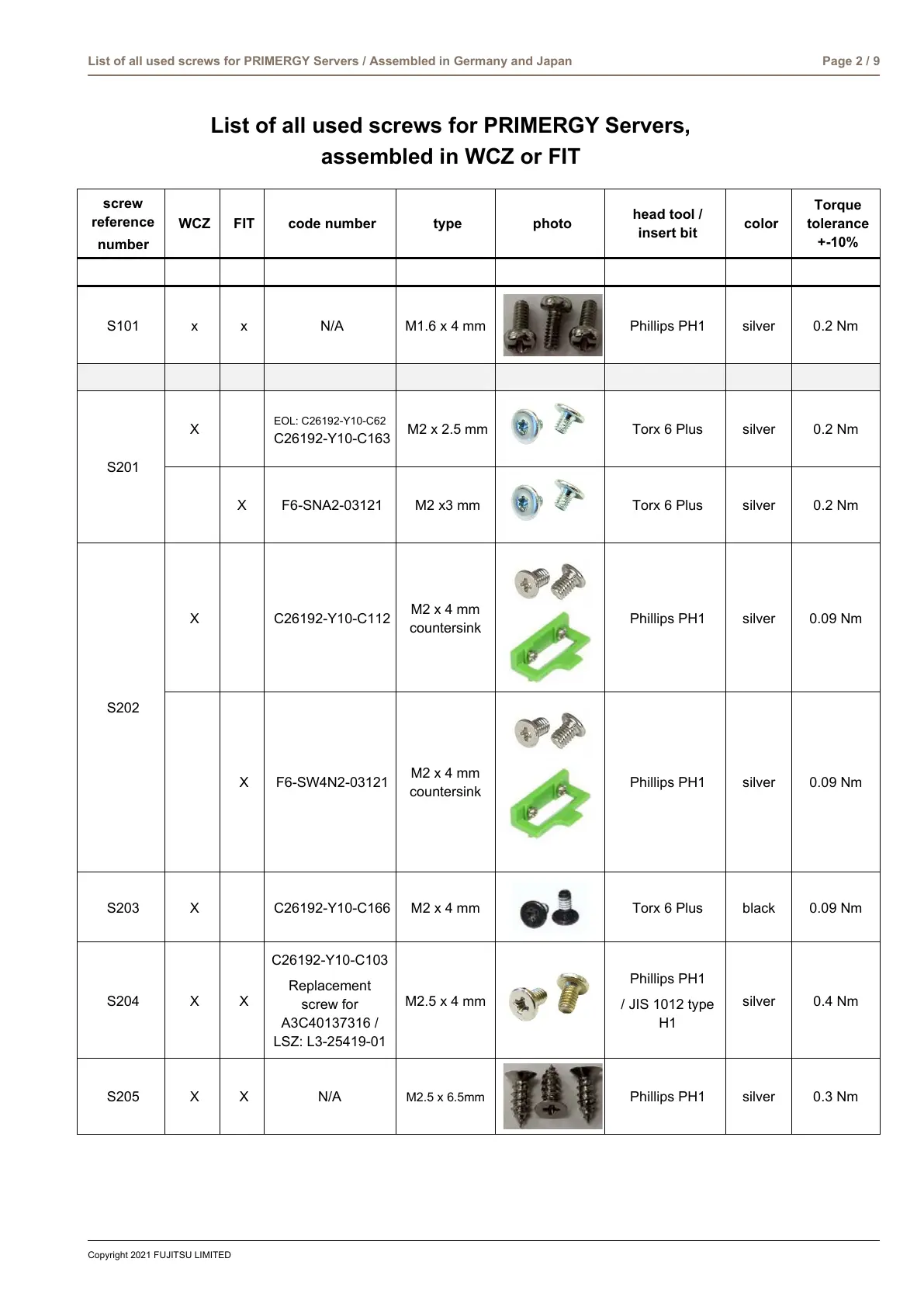

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 2 / 9
List of all used screws for PRIMERGY Servers,
assembled in WCZ or FIT
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S101
x
x
N/A
M1.6 x 4 mm
Phillips PH1
silver
0.2 Nm
S201
X
EOL: C26192-Y10-C62
C26192-Y10-C163
M2 x 2.5 mm
Torx 6 Plus
silver
0.2 Nm
X
F6-SNA2-03121
M2 x3 mm
Torx 6 Plus
silver
0.2 Nm
S202
X
C26192-Y10-C112
M2 x 4 mm
countersink
Phillips PH1
silver
0.09 Nm
X
F6-SW4N2-03121
M2 x 4 mm
countersink
Phillips PH1
silver
0.09 Nm
S203
X
C26192-Y10-C166
M2 x 4 mm
Torx 6 Plus
black
0.09 Nm
S204
X
X
C26192-Y10-C103
Replacement
screw for
A3C40137316 /
LSZ: L3-25419-01
M2.5 x 4 mm
Phillips PH1
/ JIS 1012 type
H1
silver
0.4 Nm
S205
X
X
N/A
M2.5 x 6.5mm
Phillips PH1
silver
0.3 Nm
