Insert the serial interface into the slot (1).
▶
Connect the cable to the system board "SERIAL" (2).

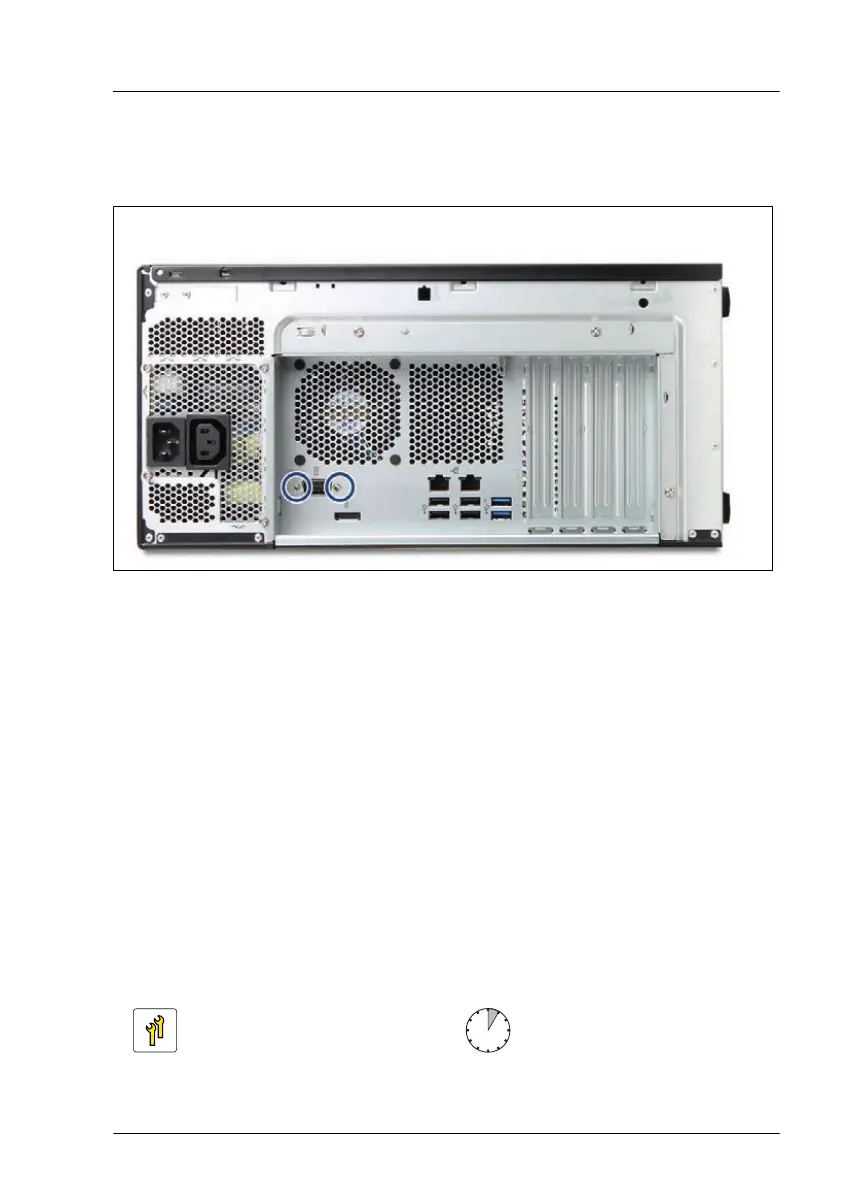

Figure 117: Installing the serial interface (B)
▶
Fasten the serial interface with two hexagon bolts (see circles).
Concluding steps
▶
"Reassembling" on page
50.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
14.3 Removing the serial interface
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Serial interface
TX1310 M5 Upgrade and Maintenance Manual 177
