Fujitsu PRIMERGY TX1310 M5

12TX1310 M5

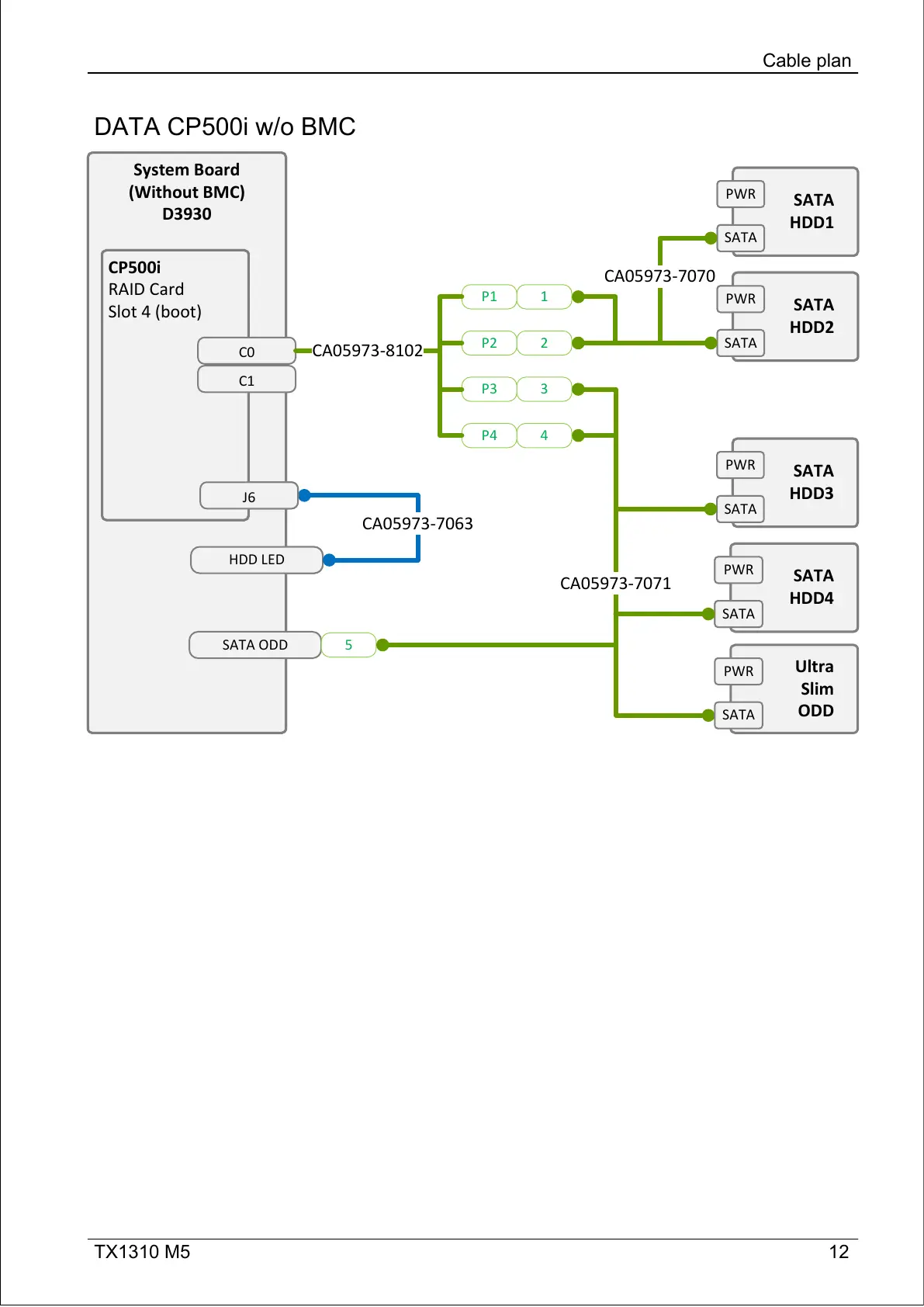

DATA CP500i w/o BMC
Cable plan
System Board
(Without BMC)
D3930
HDD LED
System Board
(Without BMC)
D3930
HDD LED
CA05973-7063
CP500i
RAID Card
Slot 4 (boot)
J6
CP500i
RAID Card
Slot 4 (boot)
J6
C0
SATA
HDD1
PWR
SATA
SATA
HDD1
PWR
SATA
SATA
HDD2
PWR
SATA
SATA
HDD2
PWR
SATA
SATA
HDD3
PWR
SATA
SATA
HDD3
PWR
SATA
SATA
HDD4
PWR
SATA
SATA
HDD4
PWR
SATA
CA05973-7070
2
1
3
4
P2
P1
P3
P4
CA05973-8102
CA05973-7071
C1
Ultra
Slim
ODD
PWR
SATA
SATA ODD 5
