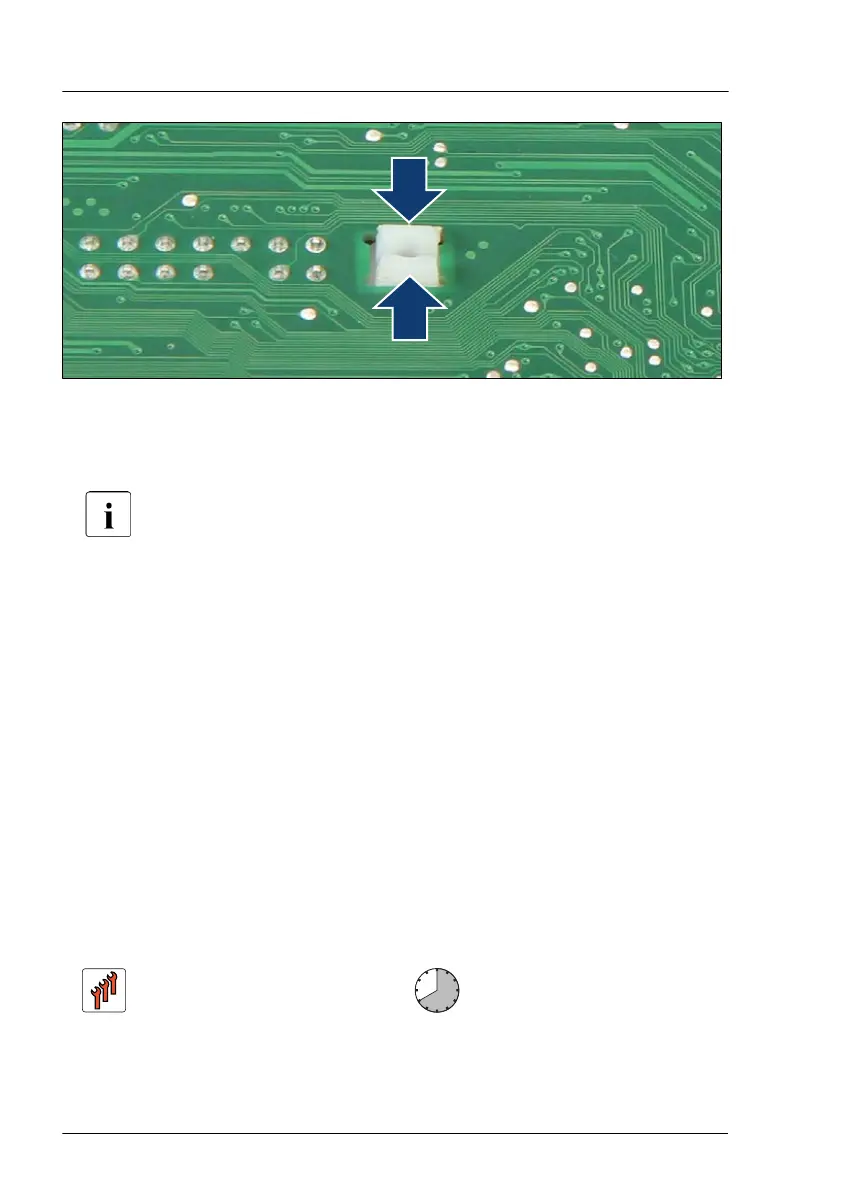

Figure 127: Removing the TPM spacer
▶
Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
If the TPM is to be replaced, the TPM spacer may remain on the
system board.
▶
Install the system board, see "Installing the new system board" on page 21
1.
Concluding steps
▶
"Reassembling" on page 50.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
▶
"Resuming BitLocker functionality" on page 68.
15.4.4 Replacing the TPM
Field Replaceable Unit
(FRU)
Hardware: 40 minutes
System board and components
192 Upgrade and Maintenance Manual TX1310 M5
