If applicable, remove the TPM, see "Removing the TPM" on page 191.
Installing the new system board
▶
Check the settings on the new system board, see "Onboard settings" on
page
235.
▶
Insert the system board by holding it at a slight angle.
▶
Slide the connectors into the connector panel.

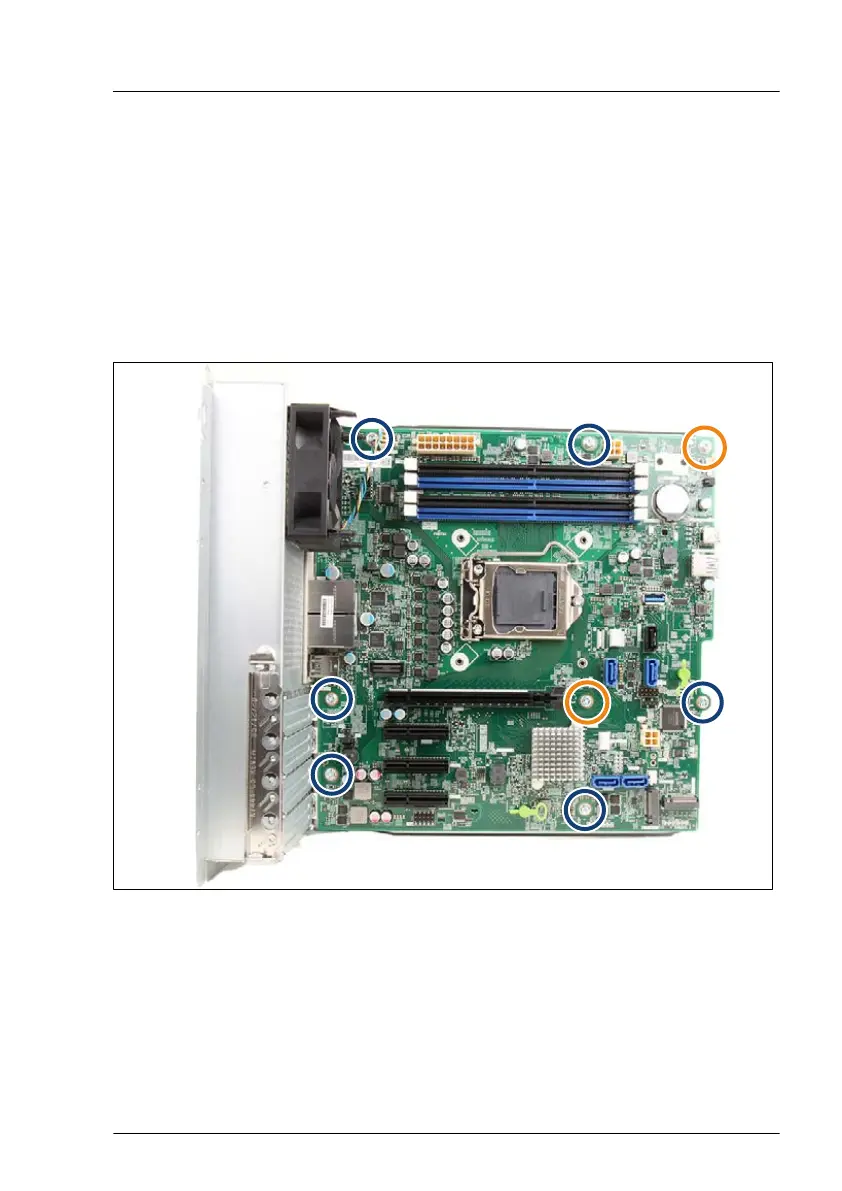

Figure 142: System board screws
▶
Lower the system board onto the centering bolts (see orange circles).
▶
Ensure that the system board is properly seated on both centering bolts.
▶
Fasten the centering bolts of the system board with two screws (see orange
circles).
System board and components
TX1310 M5 Upgrade and Maintenance Manual 211
