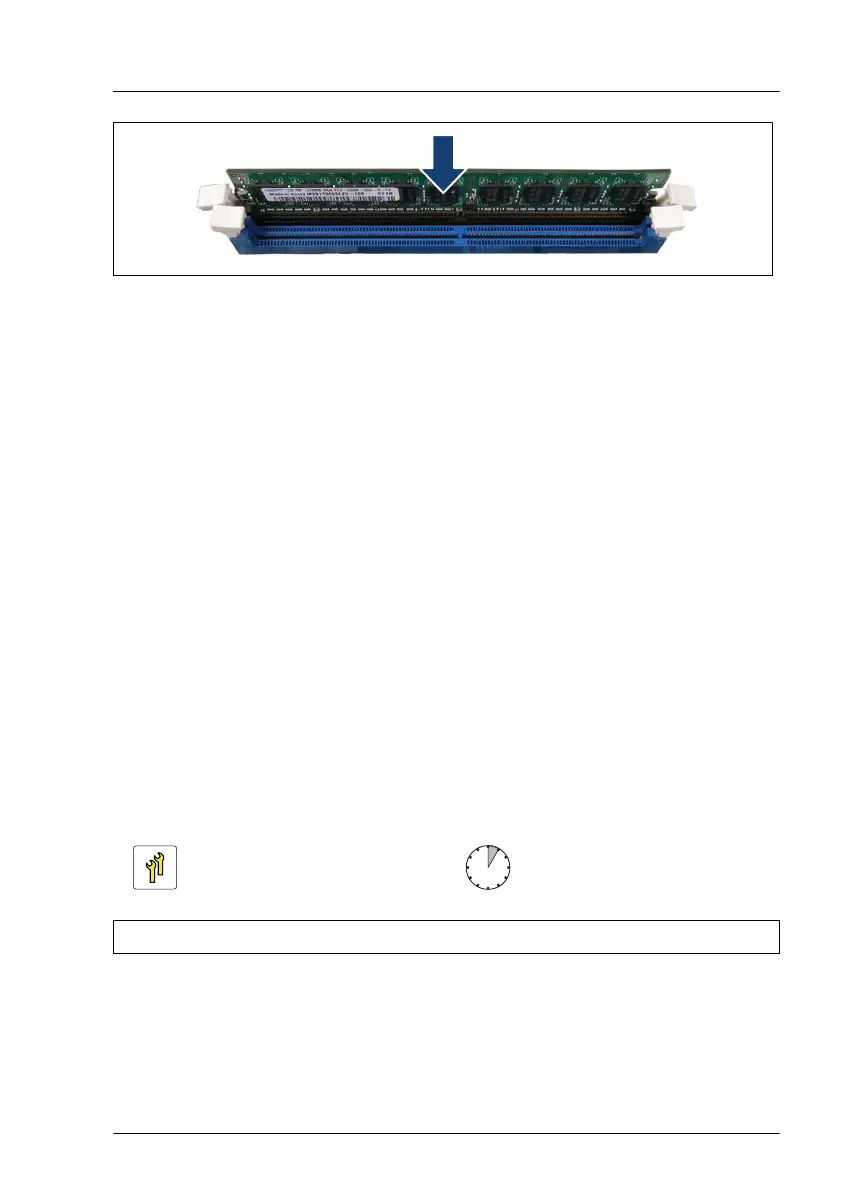

Figure 75: Installing a memory module
▶
Align the notch on the bottom of the module with the crossbar in the slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
Concluding steps
▶
"Reassembling" on page
50
.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Installing the bay cover" on page 58.
▶
"Locking the server" on page 59.
▶
If applicable, "Updating or recovering the BIOS" on page 63.
▶
"Resuming BitLocker functionality" on page 68.
10.4 Removing memory modules
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
Main memory
TX1310 M5 Upgrade and Maintenance Manual 129
