Tools: Hexagon screw driver 5 mm
Preliminary steps
▶
"Unlocking the server" on page 39
.
▶
"Removing the bay cover" on page 40.
▶
"Shutting down the server" on page 41.
▶
"Disconnecting the power cord" on page 42.
▶
"Getting access to the component" on page 43.
Removing the serial interface

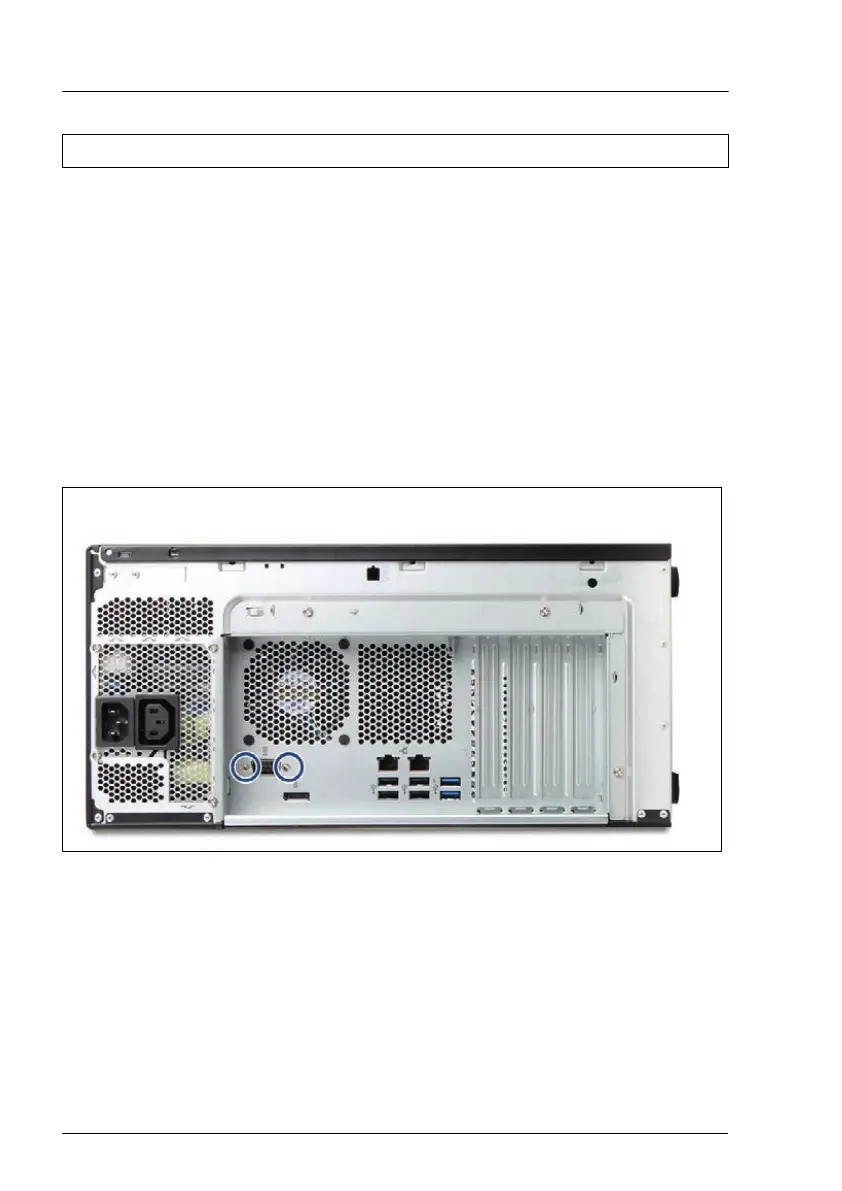

Figure 118: Removing the serial interface (A)
▶
Remove the two hexagon bolts.
Serial interface
